MadgeTech MICROTEMP100

Order # MICROTEMP100 | Mfg # 902239-00
$413.27
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

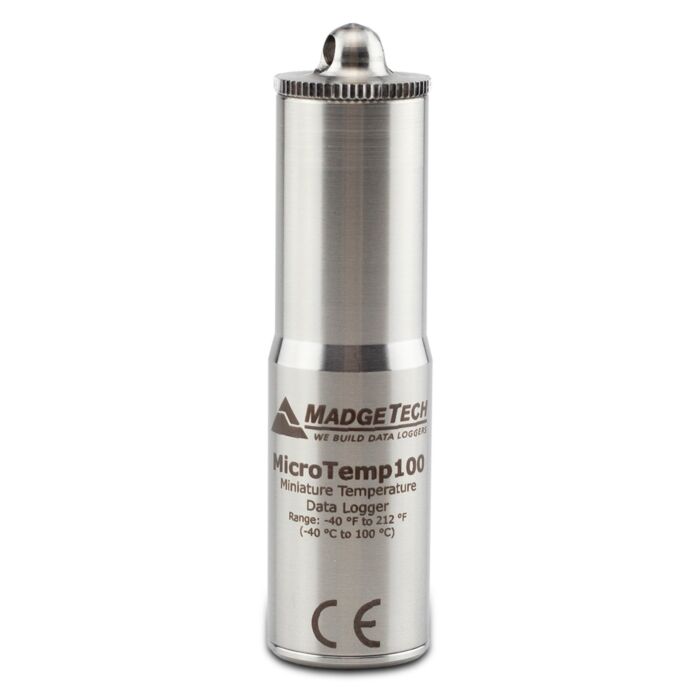

Submersible, Miniature Temperature Recorder up to 100°C (212°F)

The MicroTemp100 is a miniature data logger built to withstand temperatures up to 100 °C (212 °F). Includes ISO17025 accredited calibration certificate.

  • 2.6 Inches Tall
  • Submersible up to 230 Feet
  • Measures Temperatures up to 100 °C (212 °F)

The MicroTemp100 is a miniature data logger built to withstand temperatures up to 100 °C (212 °F). Only 2.6 inches (66 mm) tall and 0.7 inches (18 mm) in diameter, this data logger can easily fit into the smallest spaces.

Don't let its tiny size fool you, the MicroTemp100 measures and records temperatures ranging from -40 °C to +100 °C (-40 °F to +212 °F). The MicroTemp100 is submersible up to 230 feet (70 m) and has a storage capacity of 32,767 readings.

The MicroTemp100 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units, including Pasteurization Units (PU).

Technical Resources

Specifications

General
Memory 32,767 readings
Reading Rate 1 reading every 2 seconds up to 1 reading every 12 hours
LED Indicators 1 status LED
Battery Life 1 year typical
Material 316 L food grade stainless steel
Dimensions 2.6 in x 0.7 in dia. (66 mm x 18 mm dia.)
IP Rating IP68
Submersible Yes
Operating Environment -40 °C to +100 °C (-40 °F to +212 °F), 0 %RH to 100 %RH
Required Interface Package IFC202
Approvals CE
Temperature
Temperature Sensor Internal semiconductor
Temperature Range -40 °C to +100 °C (-40 °F to +212 °F)
Temperature Resolution 0.1 °C (0.18 °F)
Temperature Calibrated Accuracy ±0.5 °C (0 °C to 50 °C)
±1.0 °C (50.1 °C to 100 °C)
±2.0 °C (-40.0 °C to -0.1 °C)
