Overview

Product Highlights

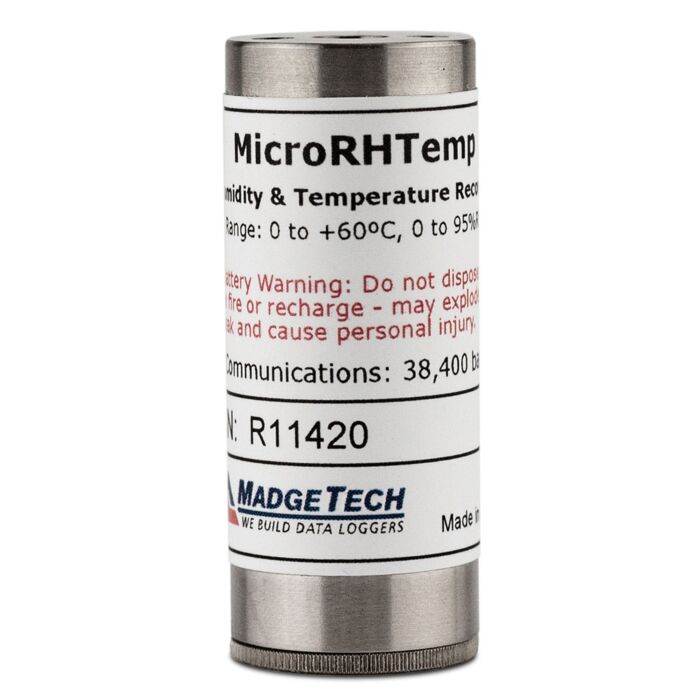

Miniature Temperature and Humidity Recorder, stainless steel enclosure

The MicroRHTemp is a miniature, humidity and temperature data logger. Includes ISO17025 accredited calibration certificate.

  • 1.5 Inches Tall
  • LED Alarm Indicator
  • Measures Temperatures from 0 °C to 60 °C

The MicroRHTemp is a humidity and temperature data logger that can fit in the tightest places. Standing only 1.5 in. (39 mm) tall and 0.6 in. (16 mm) in diameter, it's even small enough to fit into most pill bottles.

This device may be tiny, but it's powerful. The MicroRHTemp measures and records temperatures from 0 °C to +60 °C (+32 °F to +140 °F) with an accuracy of ±0.5 °C. The MicroRHTemp can store up to 32,766 readings and is equipped with an LED alarm indicator that alert when user-specified temperature limits are exceeded.

The MicroRHTemp is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

Specifications

General
Memory 32,766 readings (all channels enabled)
Reading Rate 1 reading every 2 seconds up to 1 reading every 12 hours
Baud Rate 38,400
LED Indicators Red & Green
Battery Life 1 year
Material 303 stainless steel
Dimensions 1.5 in x 0.6 in dia. (39 mm x 16 mm)
Operating Environment 0 °C to +60 °C (+32 °F to +140 °F), 0 %RH to 95 %RH non-condensing
Required Interface Package IFC102 or IFC202
Temperature
Temperature Sensor Internal semiconductor
Temperature Range 0 °C to +60 °C (+32 °F to +140 °F)
Temperature Resolution 0.1 °C (0.18 °F)
Temperature Calibrated Accuracy ±0.5 °C
Humidity
Humidity Sensor Internal semiconductor
Humidity Range 0 %RH to 95 %RH
Humidity Resolution 0.1 %RH
Humidity Calibrated Accuracy ±3.0 %RH
RH Units %RH, dew pt., water vapor, concentration (mg/hl)
