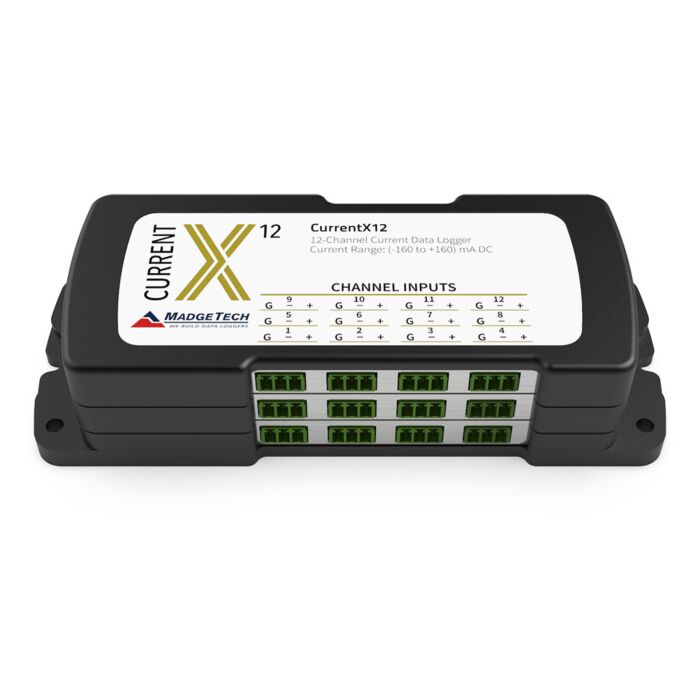

MadgeTech CURRENTX12-160MA
12-channel,low-level DC current data logger w/ 160mA range
Order #: CURRENTX12-160MA
Mfg #: 902197-00
$1,299.00
MadgeTech CURRENTX12-160MA
12-channel,low-level DC current data logger w/ 160mA range
Order #: CURRENTX12-160MA
Mfg #: 902197-00
$1,299.00
Availability: Ships in 1-2 weeks
Product Highlights
12-channel, low-level DC current data logger w/ 160mA range
Memory | 4-channel: 1,048,064 readings per channel |
8-channel: 524,032 readings per channel | |
12-channel: 349,354 readings per channel | |
16-channel: 262,016 readings per channel (all channels enabled) | |
Reading Rate | 4 Hz to 1 reading every 24 hours |
Channels | 4, 8, 12, 16 |
LED Indicators | 1 per channel and 2 status LEDs |
Battery Life | 18 months |
Material | Black anodized aluminum |
Dimensions | 4-channel: 2.70 in x 7.25 in x 1.22 in (65.6 mm x 184.2 mm x 31.0 mm) |
8-channel: 2.70 in x 7.25 in x 1.22 in (65.6 mm x 184.2 mm x 31.0 mm) | |
12-channel: 2.70 in x 7.25 in x 1.68 in (65.6 mm x 184.2 mm x 42.7 mm) | |
16-channel: 2.70 in x 7.25 in x 2.14 in (65.6 mm x 184.2 mm x 54.4 mm) | |
Operating Environment | -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing |
