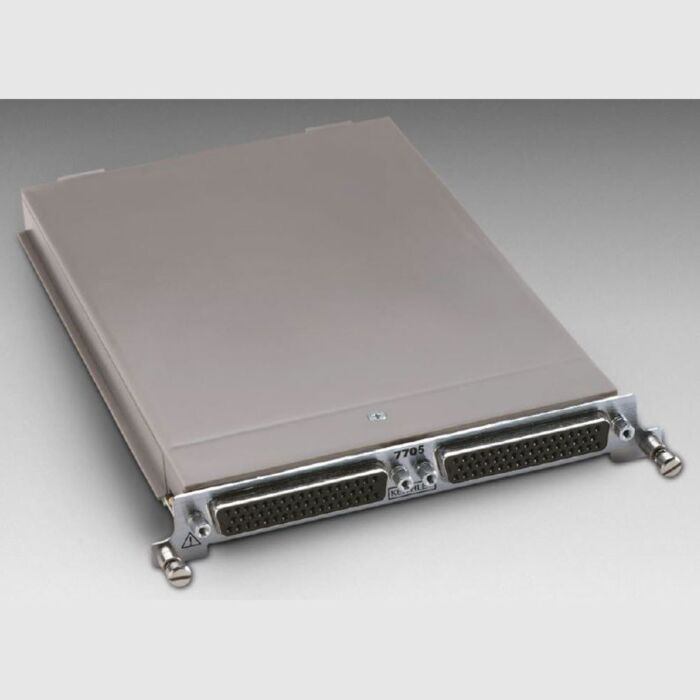

Keithley 7705 40 Channel Control Module

Product Highlights

The Model 7705 plug-in module offers 40 channels of independent switching. These channels are designed to control power to the DUT and switching loads. They can also directly control light indicators, relays, etc.

• Two 50-pin female D-sub connectors are standard for secure hook-up and quick teardown
• Relay closures stored in on-board memory
• Latching electromechanical relays
• 300V, 1A Capacity
• <1Ω Channel resistance (per conductor)
• < ±4µV Per contact, contact potential
• < 100pA Offset current
