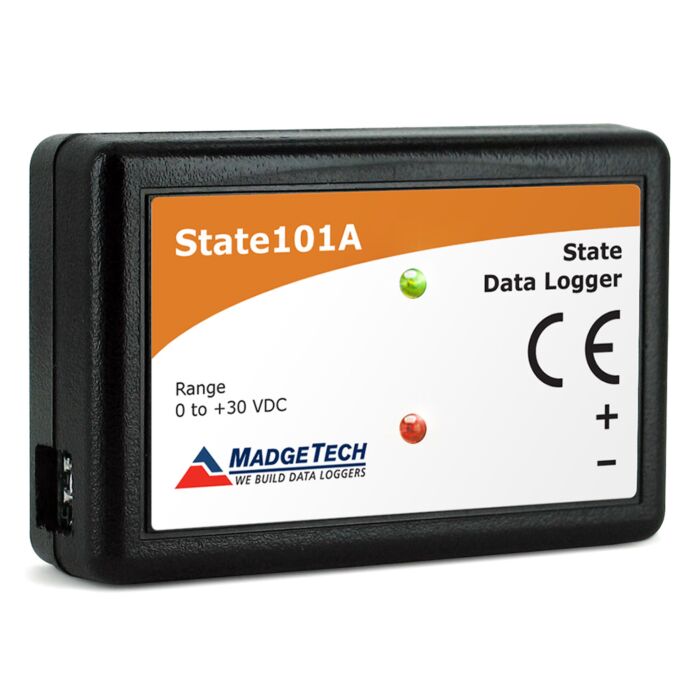

MadgeTech STATE101A
State Recorder with a 10 year battery life

Order #: STATE101A

Mfg #: 901571-00

Questions about availability or need help? Contact Us:

(800) 633-0561
$99.00

MadgeTech STATE101A

State Recorder with a 10 year battery life

Order #: STATE101A

Mfg #: 901571-00

$99.00
Availability: Ships in 3-4 weeks
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

State Recorder with a 10 year battery life

The State101A is a compact, state data logger. Includes declaration of conformance.

  • Compact Size
  • 10-Year Battery Life
  • Memory Capacity of 800,000+ Readings/li>

The State101A is a compact, state data logger that monitors and records the occurrence, duration and status of predetermined events by measuring changes in voltage.

With a user-programmable reading rate of up to 4 Hz, 10-year battery life and the ability to store up to 838,041 readings, the State101A is ideal for long-term studies. Typically connected to a relay or switch, this device features a removable screw terminal block to easily disconnect and retrieve the logger for data download without disrupting wiring connectivity.

The State101A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Memory 838,041 readings
Reading Rate 4 Hz to 1 every 24 hours
Baud Rate 115,200
Channels 1
LED Indicators Red and Green
Battery Life 10 years typical, dependent upon frequency and duty cycle
Material Polycarbonate
Dimensions 1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm)
Operating Environment -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing
Required Interface Package IFC200
Approvals CE
State Input Range 0 to 30 V
State Input Low <0.4 V
State Input High >2.8 V
State Internal Weak Pull-up <60 ?A
State Input Impedance 60000 Ω
State Resolution 4 Hz (reading rate selectable in software)
