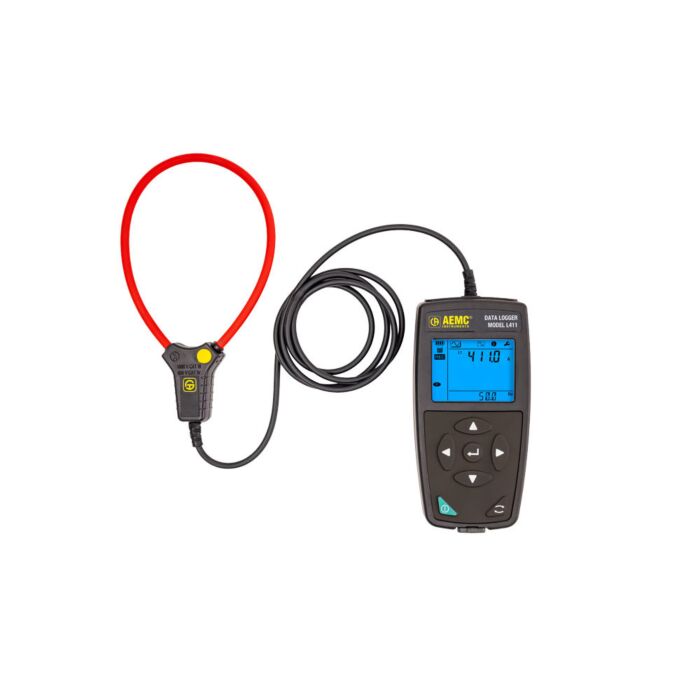

The Data Logger Models L411, L412 and L461 are single or dual channel data loggers. They are powered by batteries or from the power source via a USB cable. They can record up to 200 recording sessions.
The Model L411 can record AC currents on one channel, from (0.4 to 3600) AAC.
The instrument complies with standard IEC/EN 61010-2-0322 for a voltage of 600 V in CAT IV or 1000 V in CAT III, pollution degree 2.
- Flexible: accommodates tight spaces and large conductors with integrated MiniFlex® sensor
- Accurate: True RMS measurement ensures reliable readings on complex loads
- Informative: real-time and maximum values displayed on backlit LCD, 1 s trends available through control panel software
- Convenient: Wi-Fi and USB connectivity for easy setup, control, and data retrieval
- Long-lasting: continuous USB power eliminates battery life limitations for uninterrupted long-term monitoring
- Flexible operation: start and stop recordings from the instrument display, control panel, or remote user interface on a mobile device
- Adaptable: adjustable aggregation intervals for detailed or long-duration monitoring
- Reliable: stores up to 200 recording sessions with onboard memory
Applications
- Load profiling and demand analysis
- Energy audits
- Preventive maintenance
- Troubleshooting intermittent current issues
Each Unit Includes
- Data Logger 1-Channel AC Current (L411)
- MiniFlex® Sensor
- USB to Micro USB Cable
- US Wall Plug to USB Adapter
- 3 - AA Alkaline Batteries
- Quick Start Guide
- USB drive with DataView® Software
- User Manual
