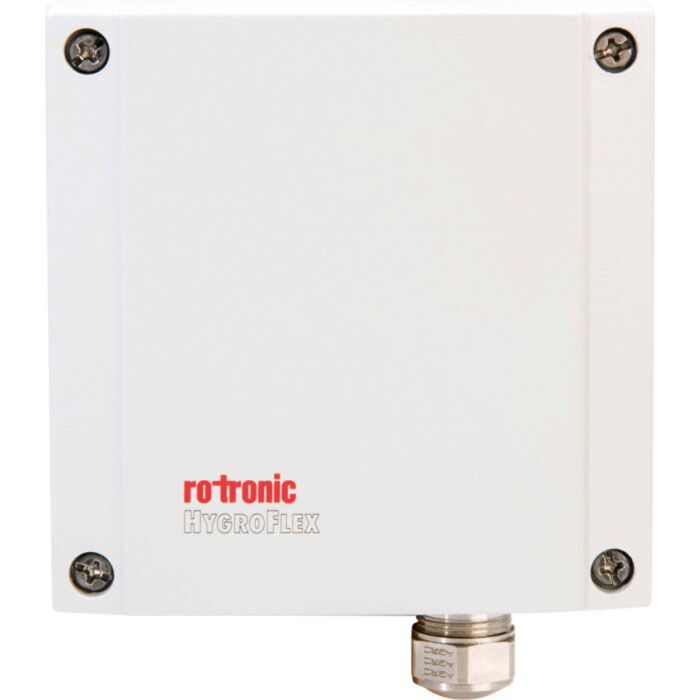

The Rotronic HF732A-QBD6X1TXX is a heavy-duty, industrial-grade humidity and temperature transmitter designed for fixed, duct-mounted installations in harsh environments. It operates in extreme temperatures ranging from -100°C to 150°C (with the probe capable of surviving up to 200°C) and outputs analog 4 to 20 mA signals.
The Rotronic HygroFlex-7 series of temperature and humidity transmitters are designed for fixed installation in industrial applications. Equipped with a metal enclosure and a metal probe that can survive exposure to temperatures up to 200°C (392°F), the HygroFlex-7 can handle the toughest industrial environments. The HygroFlex7-series is compatible with HygroClip2 probes with integrated AirChip3000 technology - which achieve a degree of accuracy not seen before. AirChip3000 technology compensates humidity and temperature over 30,000 reference points, has a 2000 data point memory, calculates dew/frost point, has sensor auto-diagnostics and automatic correction. AirChip3000 also includes active alarming and information, as well as ASIC (Application Specific Integrated Circuit); micro-controller and EEPROM on one chip.
- Supply Voltage: 15 to 40 VDC/li>
- Output Signal: 4 to 20 mA (Low voltage 3-wire)/li>
- Sensor Type: Relative Humidity and Temperature Transmitter/li>
- Installation: Duct mount/li>
- Enclosure: Die-cast aluminum for extreme industrial durability
Applications
- Heavy industry
- Building management systems
- Underground facilities
- Tunneling
Each Unit Includes
- Humidity and Temperature Transmitter, 15 to 40 VDC (HF732A-QBD6X1TXX)
