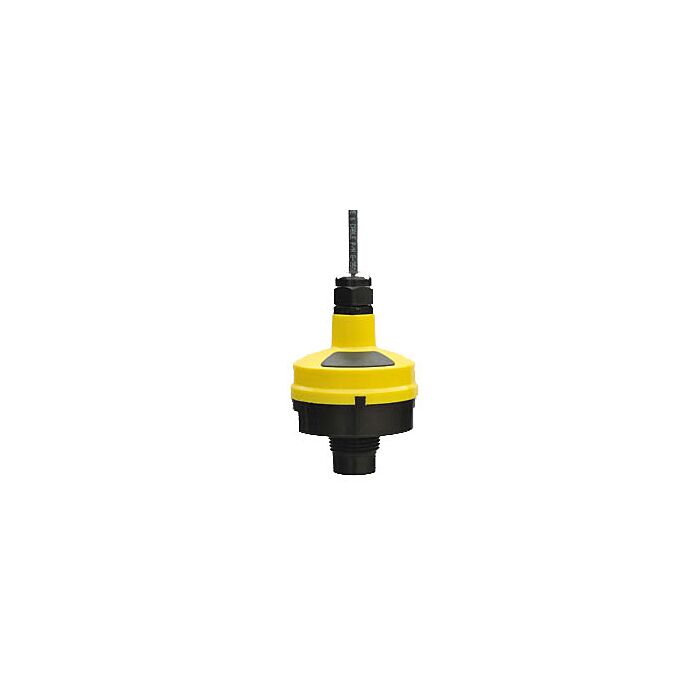

Flowline DL24-01

Product Highlights

• Switch and control functions with continuous level measurement output up to 9.8' (3m)
• Configuration is fast and easy via WebCal software and USB adapter
• Narrow 2" beam width and short 4" dead band optimized for day tanks
• Four (4) programmable relays rated @ 1A / 60VA for switch, pump or valve control and fail-safety
• PVDF transducer and 6P polycarbonate enclosure for corrosive liquids
• Automatic temperature compensation for accurate measurement
• Range: 9.8' (3m)
• Accuracy: ± 0.2% of range
• Resolution: 0.039" (1mm)
• Dead band: 4" (10cm)
• Beam width: 2" (5cm)
• Configuration: WebCal® PC Windows® USB 2.0
• Memory: Non-volatile
• Supply voltage: 24 VDC (loop)
• Consumption: 0.5W
• Loop resist.: 400O max
• Signal output: 4-20 mA, two-wire
• Signal invert: 4-20 mA or 20-4 mA
• Signal fail-safe: 4 mA, 20 mA, 21 mA, 22 mA or hold last
• Contact type: (4) SPST relays
• Contact rating: 60 VA, 1A maximum
• Contact fail-safe: Power loss: Hold last
• Echo loss: Open, close or hold last
• Hysteresis: Selectable
• Process temp.: F: -4° to 140° C: -20° to 60°
• Temp. comp.: Automatic
• Ambient temp.: F: -31° to 140°C: -35° to 60°
• Pressure: MWP = 30 PSI (2 bar)
• Enclosure rating: Type 6P, encapsulated, corrosion resistant & submersible
• Encl. material: Polycarbonate
• Trans. material: PVDF
• Cable jacket mat.: Polyurethane
• Cable type: 9-conductor, shielded
• Cable length: 48" (1.2m)
• Process mount: 1" NPT (1" G)
• Mount gasket: Viton®
• Classification: General purpose
• Compliance: CE, RoHS
• Approvals: cFMus
