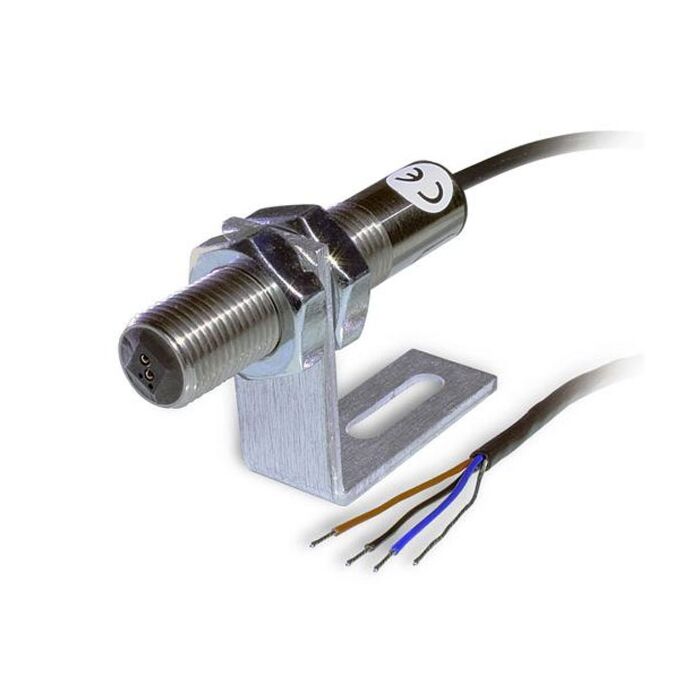

Monarch Instrument IRS-W
Infrared Optical Sensor

Order #: IRS-W

Mfg #: 6180-021

Questions about availability or need help? Contact Us:

(800) 633-0561
$334.60

Monarch Instrument IRS-W

Infrared Optical Sensor

Order #: IRS-W

Mfg #: 6180-021

$334.60
1-1,000,000 RPM. Tthe IRS-W Infrared Sensors are proven to be reliable high speed sensors. With a working range of 12 mm from very high speed equipment or an application providing contrasting light and dark surfaces.
Availability: Ships in 3-4 weeks

Product Highlights

  • Operating Distance 0.5" (12 mm) sensing gap
  • Speed Range 1-1,000,000 RPM
  • Operating Temperature -40° to 185° F (-40° to 85° C)
  • Power required 3.3-15 Vdc, 40 mA
  • Output Signal TTL 5-0 Vdc
  • Standard Cable 8 feet (2.4 m)
  • Dimensions 0.625" x 2.90" (16 x 73 mm)
