The optoNCDT 1x20 laser sensors are among the best in their class. The sensors offer a unique combination of speed, size and performance. The laser sensors are used for the precise measurement of displacement, distance and position in all fields of automation technology, such as machine building, 3D printers and robotics.
The optoNCDT 1x20 sensors use an intelligent surface control feature. The Active Surface Compensation (ASC) ensures stable measurement results regardless of changing colors or brightness of the target surface. Ideal for industrial series applications
Different output signals enable the sensor to be integrated into plant and machine control systems. As well as analog voltage and current outputs, a digital RS422 interface provides distance information from the sensor. Due to the universal setting and evaluation possibilities, the optoNCDT 1x20 sensors meet all the requirements for use in industrial series and OEM applications.

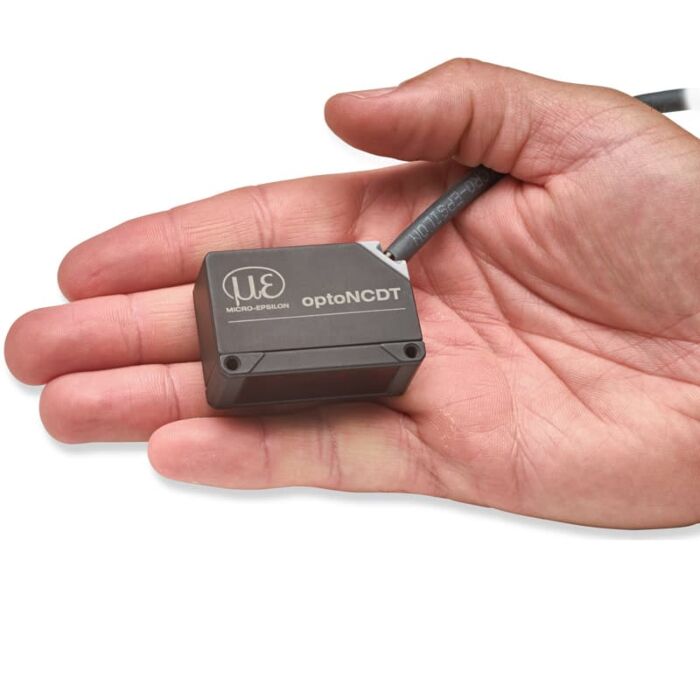

Highest precision in a minimum of space
Compact size combined with low weight opens up new fields of application. The selectable connector type, i.e. cable or pigtail, together with compact size reduce the sensor installation effort to a minimum.
Now even more powerful!
The optoNCDT 1x20 sensors have been optimized for industrial series use. Furthermore, the robust IP67 sensor housing allows use in industrial environments, even with high accelerations. A high-performance D/A converter enables 16 bit resolution at the analog output. Therefore, the sensor achieves even more precise measurement results. With the doubled measuring rate, even faster measurements can now be performed.
- Measuring range 100 mm
- Reference distance to start of measuring range 50 mm
- Adjustable measurement rate in 5 stages starting with 250 Hz to 4000 Hz
- Compact sensor design with integrated signal conditioning
- Laser wave length 670 nm, red
- Analogue output 4 - 20 mA
- Digital output via RS422 (switchable) with teach-in and trigger input
- Setup via web interface
- Peak selection: first, highest or last Peak
- Power supply 11- 30 VDC
- integrated cable 3 m with open wires
- Protection class IP67
Each Unit Includes
- 1 ILD1x20 sensor
- 1 Assembly instructions
- 1 digital calibration protocol accessible via web interface
- Accessories (2x M2 screws and 2 washers)
