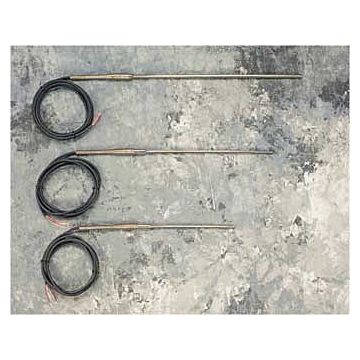

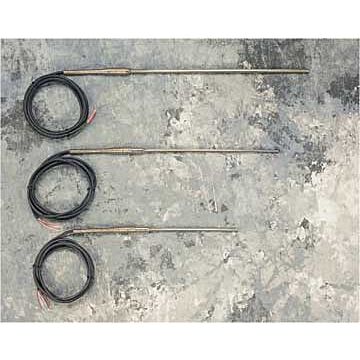

Fluke Calibration 5627A-12-P RTD Industrial Probe, 12" x 1/4"
RTD Industrial Probe, 12" x 1/4" OD
Order #: 5627A-12-P
Mfg #: 3377081
Special Price
$1,393.23
Regular Price
$1,678.60
Fluke Calibration 5627A-12-P RTD Industrial Probe, 12" x 1/4"
RTD Industrial Probe, 12" x 1/4" OD
Order #: 5627A-12-P
Mfg #: 3377081
Special Price
$1,393.23
Regular Price
$1,678.60
Availability:
In stock
Product Highlights
The Fluke Calibration 5627A12P Precision Industrial RTD Probe with INFO-CON for 1523/1524, 12 in. x 1/4 in., -200 °C to 420 °C has a temperature range of up to 420 °C and an accuracy as good as ± 0.025 °C. This precision thermometer is shipped with its ITS-90 coefficients and a calibration table in 1 °C increments. One of the best features of the 5627A-12-P sensor is that it conforms to the standard 385 curve, letting you use your DIN/IEC RTD meters fully.
The 5627A-12-P is manufactured using a coil suspension element design for increased shock and vibration resistance. It has a mineral-insulated sheath with a minimum bend radius of 19 mm (3/4-inch) for flexibility and durability. It is individually calibrated and includes a NVLAP-accredited report of calibration from the manufacturer with lab code 200706-0.
Specifications |
|
| Resistance | Nominal 100 Ω |
| Temperature Coefficient | 0.00385 Ω/Ω/ °C nominal |
| Temperature Range | ?200 °C to 420 °C (5627A-6 and 5627A-9 to 300 °C; transition and cable temperature: 0 °C to 150 °C) |
| Drift Rate (k=2) | ± 0.04 °C at 0 °C after 100 hours at 420 °C |
| Sheath Material | 316 Stainless Steel |
| Leads | PTFE-insulated, nickel-plated stranded copper, 22 AWG |
| Termination | Specify. See Ordering Information. |
| Time Constant | Four seconds maximum for 63.2 % response to step change in water moving at 3 fps. |
| Bending Radius | Sheath may be ordered with a bend on a minimum radius of 19 mm (3/4 in) except for 50 mm (2 in) area of sheath near tip. (Fluke lab requires 20 cm [8 in] of unbent sheath to re-calibrate.) |
| Calibration | Includes manufacturer's NVLAP-accredited (lab code 200706-0) calibration and table with R vs. T values in 1 °C increments from -196 °C to 500 °C (to 300 °C for 5627A-6 and 5627A-9). ITS-90 coefficients included. |
| Immersion | At least 100 mm (4 in) recommended |
| Calibrated Accuracy
