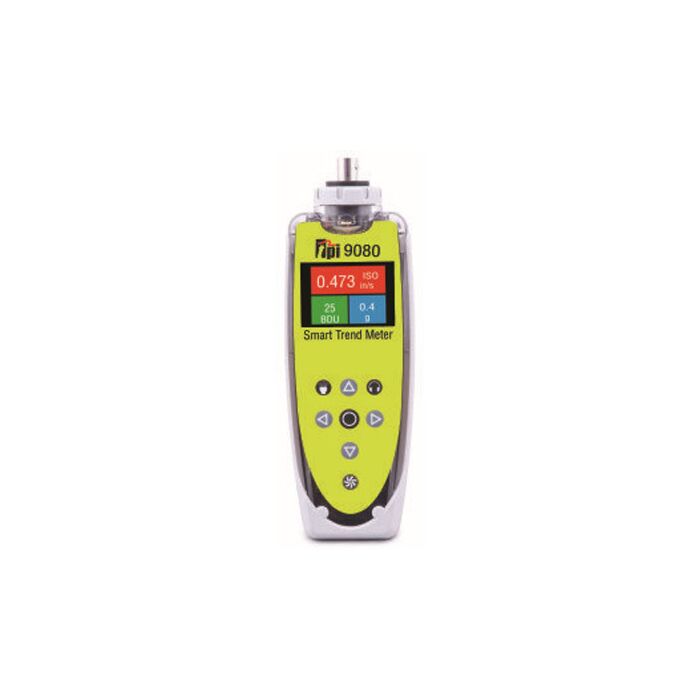

Test Products International 9080 Vibration Analyzer

Overview

Collect data
Trend data using VibTrend software
Standard Cable mounted accelerometer with magnet
Built-in Bluetooth communication capability
USB docking station to download to a PC
ISO built-in Alarms
Easily identify bearing problems with BDU Reading
Easily identify problems with built-in band tilters: 1X (unbalance) 2X (misalignment) 3X (looseness)
800 line FFT (spectrum)
Listen to bearing noise with optional Bluetooth headphones
Ruggedized IP67 case
3-year Limited Warranty

Test Products International 9080 Smart Trend Meter Datasheet

Specifications
Size	200 mm x 60mm x 26mm
Weight	280g (not including magnet)
Environmental:
Water, Sand & Dust:	IP67 Waterproof
Operating	0°C to 50°C
Storage	-20°c to 70°C
Power supply	2 x AA batteries
Battery life	Auto power OFF - typically 20 hours continuous operating time depending on brightness setting.
Frequency range	2 Hz to 1kHz (ISO) 1 kHz to 10 kHz (BOU)
Max frequency resolution	1.25 Hz @ 800 lines FFT setting Acceleration in g Velocity in mm/s (or inch/s) Bearing noise in BOU (bearing damage units) Displacement (mm, microns, inch)
Displayed Frequency Units	Hertz (Hz), RPM or CPM
Input range	User selectable with accelerometer sensitivity
Dynamic range	96 dB (0.01g resolution)
VA diagnostic bands (RPM = run speed)	Unbalance 1x RPM Alignment 2x RPM Looseness 3x RPM
