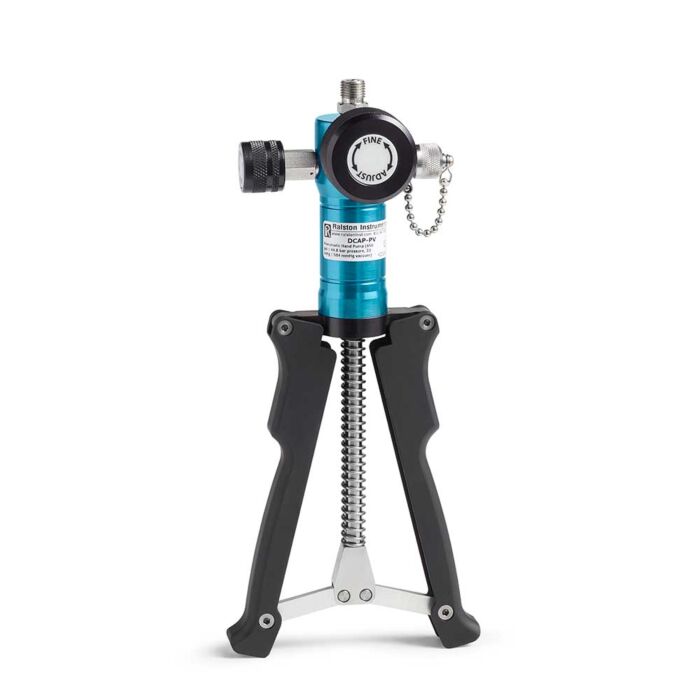

Ralston Instruments DCAP-PV Vacuum Pressure Pump, 650PSI (4.5 mPa) 28.5" HgVac, 1/4" NPTM, 3'Hose
Vacuum Pressure Pump,650PSI(4.5 mPa)28.5"HgVac,1/4"NPTM,3'Hose

Order #: DCAP-PV-2MSA

Mfg #: DCAP-PV-2MSA

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $1,647.85 Regular Price $1,647.86

Ralston Instruments DCAP-PV Vacuum Pressure Pump, 650PSI (4.5 mPa) 28.5" HgVac, 1/4" NPTM, 3'Hose

Vacuum Pressure Pump,650PSI(4.5 mPa)28.5"HgVac,1/4"NPTM,3'Hose

Order #: DCAP-PV-2MSA

Mfg #: DCAP-PV-2MSA

Special Price $1,647.85 Regular Price $1,647.86
Availability:
In stock

Product Highlights

The DCAP-PV will generate 650 psi of pressure and 28.5 inHg of vacuum which makes it ideal product for calibrating DP pressure transmitters, testing pressure switches or checking pressure gauges in the field.

  • Generate pressure to 650 psi/4.5 Mpa and vacuum to 28.5 inHg/710 mmHg
  • Metal handles are durable so they do not fatigue over time and come loose
  • Change from pressure to vacuum using a knob instead of requiring a tool
  • Vacuum generation does not rely on the spring which makes pumping easier
  • No need for a spring tension adjustment for vacuum as vacuum is generated on up-stroke
  • Each pump comes with Ralston Quick-test connections for easy connection in the field
  • Field maintainable with simple tools found in any toolbox
  • Multiple pressure ports for connecting both a reference gauge and a hose to device under test
  • Stainless steel fittings prevent damage from corrosion, wear or hazardous chemicals
  • Made in USA

Each Unit Includes

  • Pressure and vacuum pump
  • 3 foot Quick-test hose and 1/4" Male NPT process connection
