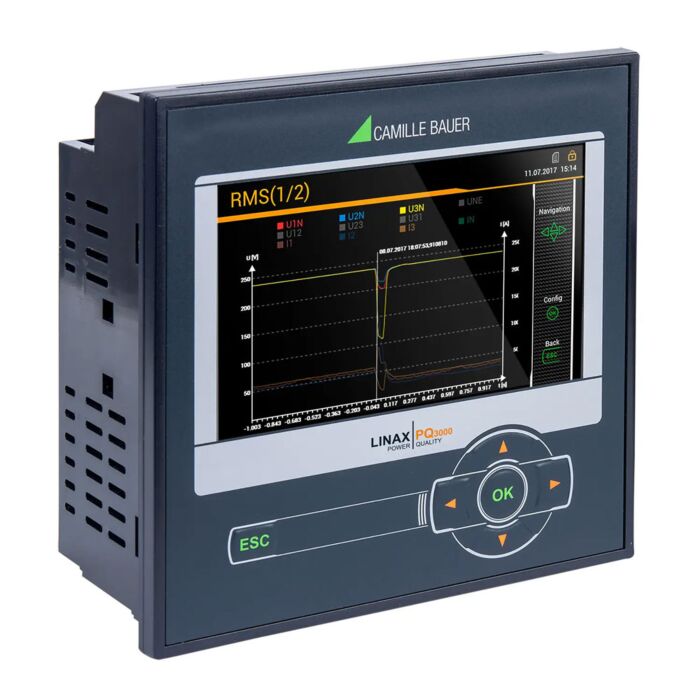

Dranetz PQ3000-1112 000E Power Quality Analyzer, Class A, 110V-230VAC, 130V -230VDC

The Dranetz PQ3000-1112 000E (192929) Multifunctional Power Quality Analyzer is a certified Class A measurement device according to IEC 61000-4-30 Ed. 3. This instrument provides reliable and comparable information for regulatory authorities, energy suppliers, or internal quality control.

• Certified power quality analysis in class A, according to IEC 61000-4-30 Ed. 3
• Data exchange format for power quality data via PQDIF
• Power quality conformity reports via website possible without external software

Specifications

• Basic Device: TFT Display - Instrument Panel Mounting
• Input Frequency Range: 4x Current Inputs, 42 to 50/60 to 69.5 Hz
• Power Supply: 110V to 230VAC, 130V to 230VDC
• Bus Connection: Ethernet (TCP/IP) + RS485 (RTU)
• Standard Protocol: REST Interface + Modbus
• Standard I/Os: 1x Digital Input Passive, 2x Digital Outputs Passive
• Extension 1 (Input/Output): N/A
• Extension 2 (Connectivity): N/A
• Extension 3 (Extra Features): N/A
• Test Certificate: English
• Size: 144 mm x 144 mm

Each Unit Includes

• 1 - PQ3000-1112 000E Multifunctional Power Quality Analyzer, Standard Unit, Front Panel Mounting, Class A (192929)
