Product Highlights

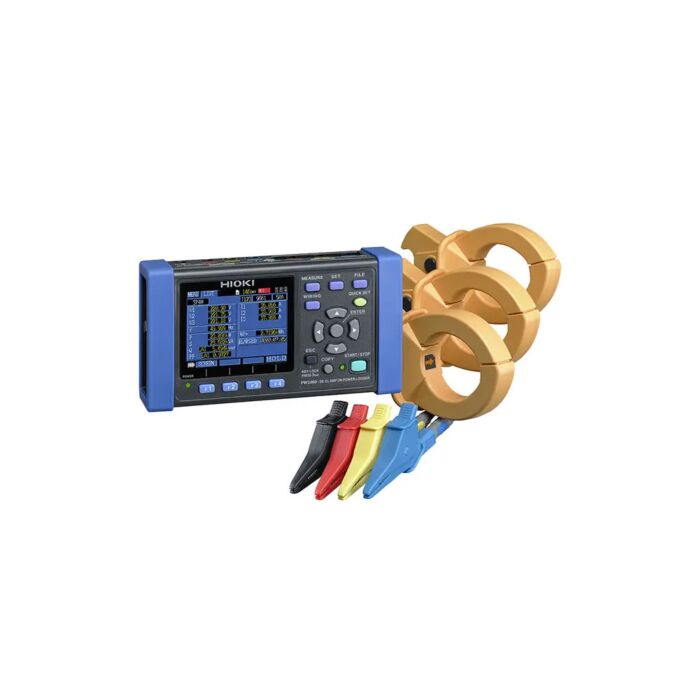

The Hioki PW3360-21/5000 PRO KIT Clamp-on Power Logger Kit with Harmonic Analysis is a multi-channel power measuring device utilizing clamp sensor input to accurately and safely measure power on single-phase to three-phase lines. The compact PW3360-21/5000 PRO KIT 3-phase 4-wire energy logger monitors power demand and other power parameters to aid in energy audits and validate energy saving measures.
The PW3360's QUICK SET feature is an on-screen guide that walks users through the setup process, right up to starting measurement. Operators will be able to easily configure and connect the instrument for 3-phase power measurement. In addition, by alerting users to any wiring mistakes, the device's "wiring check" function serves to prevent measurement errors that are caused by undetected wiring mistakes.
The PW3360 displays recorded measured values as a graph for convenient use in power management. In addition to instantaneous measured values, users can review maximum, minimum, and average values by moving the cursor on the demand and trend graph displays.
This power logger is an essential tool for power-saving activities. Thanks to a compact design that weighs just 1.2 lbs (550 g), it's easy to take into the field and install in confined locations. Battery power (model PW9002, included) provides about eight hours of continuous operation. In addition, a Voltage Line Power Adapter (model PW9003, sold separately) is available to power the PW3360-21 from the measurement lines. The operating temperature range extends from -10 to 50°C (14 to 122°F). Even under battery operation, measurements can be performed from 0 to 40°C (32 to 104°F) [0 to 50°C (32 to 122°F) when using LAN communication].
Features
- Kit includes 3 x 5000A AC current sensors, rechargeable battery, SD card and carrying case
- Performs harmonic measurements up to the 40th order
- Displays RMS value, content, and phase angle (numerical list or graph display) for each harmonic order
- Provides vector display of power phase angle
- Supports single to three-phase, 4-wire circuits
- Simultaneously measures up to three single-phase, 2-wire circuits (in same power system)
- Measures voltage between 90V to 780V
- Displays demand and trend graphs on site
- Slim, compact design accomodates all worksites
- Battery power provides about eight hours of continuous operation
- Suitable for use in harsh environments with extended operating temperature range (32 to 104°F)
- Included SD card can store months of data
- Quick Set function guides users in making the right connections
