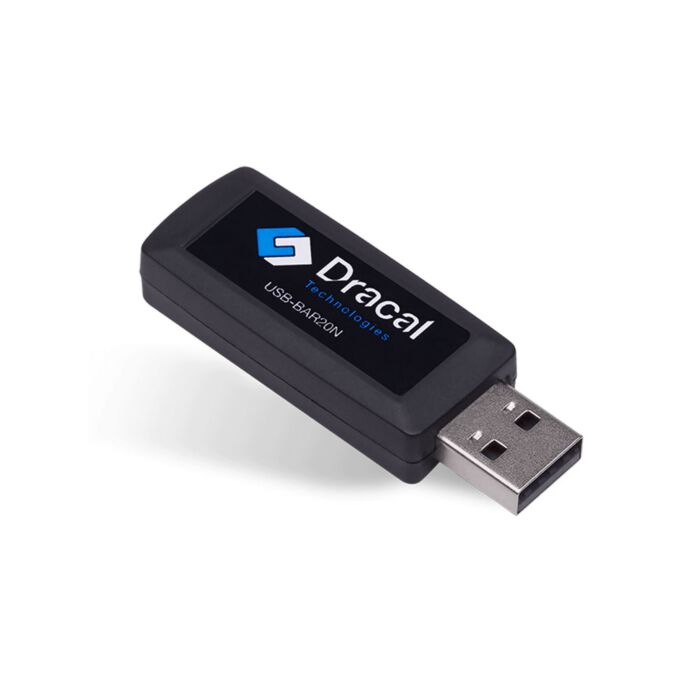

Dracal USB-BAR20

Product Highlights

• Atmospheric pressure
  • Range: 1 to 120 kPa (10 to 1200 mbar)
  • Accuracy: ±0.15 kPa at 25°C (1.5 mbar)
  • Resolution: 0.0065 kPa (0.065 mbar)
  • Internal factory calibrated coefficients
  • ADC resolution: 24 bits
  • Altitude resolution: approx. 10 cm
  • Sensor IC: MS5611
• Internal temperature
  • Operating range: -40°C to 85°C
  • Accuracy: ±0.8°C
  • Difference int. vs ext.: +3°C at 25°C (typical)
  • Resolution: <0.01°C (typical)
• Miscellaneous
  • Operating temperature range: -20°C to +70°C
  • Powered through USB
  • Communication: USB 2.0
  • Enclosure: ABS Plastic, USB-key form factor
  • Weight: 6 g
  • Rating: IP60
  • Overall dimension: H 2.295? (58 mm) X W 0.759? (19 mm) X D 0.425? (11 mm)

Each Unit Includes

• One (1) BAR20 unit
• Quick installation guide
• Data acquisition solution for DAQ system
