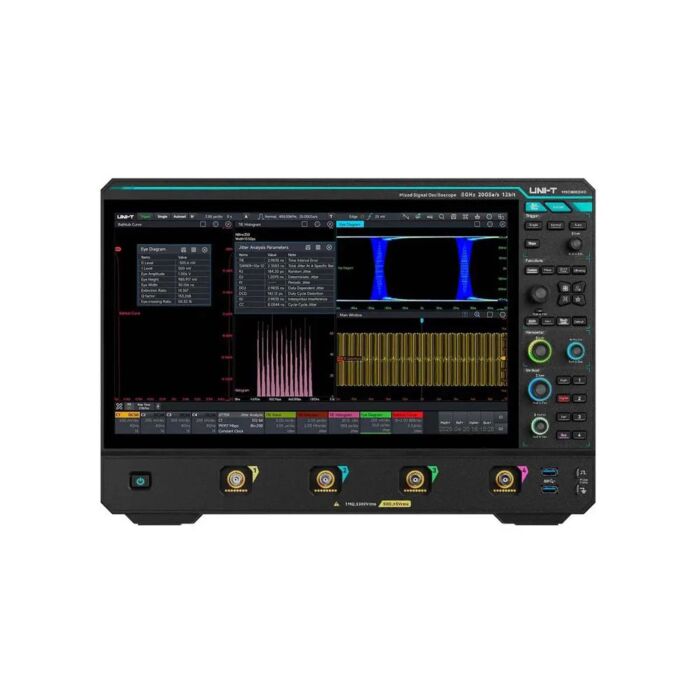

The UNI-T MSO8804HD delivers 8 GHz bandwidth, 20 GSa/s sampling, and 12-bit resolution for uncompromising signal fidelity in next-generation designs. With 4 analog + 16 digital channels, deep 2 Gpts memory, and advanced analysis options like PAM-N, PCIe, USB, and jitter/eye diagrams, it’s ideal for engineers validating high-speed serial interfaces, 5G communications, and semiconductor performance.
The UNI-T MSO8804HD represents the pinnacle of mixed signal oscilloscope technology, delivering professional-grade 8GHz bandwidth with 20GSa/s real-time sampling and industry-leading 12-bit vertical resolution. Engineered for the most demanding high-speed digital design and validation applications, the MSO8804HD combines exceptional signal fidelity with comprehensive protocol analysis capabilities. Featuring an ultra-low noise floor of ≤800µV and 7-bit ENOB at full bandwidth, this instrument delivers measurement accuracy that rivals oscilloscopes costing twice as much. With support for 21+ serial protocols, advanced jitter analysis, and automated compliance testing, the MSO8804HD is the definitive solution for semiconductor design, 5G communications, automotive electronics, and aerospace applications.
The MSO8804HD features an intelligent channel architecture that maximizes performance when needed. For maximum bandwidth and sample rate (8GHz, 20GSa/s), the instrument operates in optimized dual-channel mode using channels C1, C3, or both simultaneously. This configuration is ideal for differential signal analysis, high-speed serial interfaces, and critical timing measurements where ultimate performance is essential. When analyzing complex systems requiring three or four channels simultaneously, the MSO8804HD automatically provides 4GHz bandwidth and 10GSa/s sampling across all channels—still exceptional performance that exceeds most competing instruments. The intelligent architecture ensures users always get optimal performance for specific measurement requirements.
The MSO8804HD's 12-bit analog-to-digital converter delivers 16 times finer vertical resolution than conventional 8-bit oscilloscopes, enabling precise characterization of high-speed digital signals, power integrity measurements, and weak signal analysis. Combined with Enhanced Resolution (ERES) mode, users can achieve up to 16-bit precision for the most demanding measurement applications. The noise floor of just 800µV at full bandwidth ensures that small signals remain visible above the noise, while the superior 7-bit ENOB at 8GHz maintains measurement accuracy even at maximum bandwidth. This exceptional signal integrity makes the MSO8804HD ideal for validating next-generation semiconductor designs and high-speed communication systems.
- 8GHz Analog Bandwidth - Full bandwidth available in optimized dual-channel mode (C1, C3, or C1+C3)
- 20GSa/s Sample Rate - Maximum performance in optimized dual-channel configuration for differential signal analysis
- 12-bit Vertical Resolution - Superior 4096-level quantization reveals signal details missed by 8-bit scopes
- Ultra-Low Noise Floor - Industry-leading ≤800μV noise enables measurement of weak signals
- Up to 2Gpts Memory Depth - Capture long protocol sequences and intermittent events
- 1M+ Waveform Capture Rate - Sequence mode delivers exceptional event detection capability
- 21+ Protocol Analysis - Comprehensive serial bus decoding from embedded to aerospace standards
- Hardware Jitter Analysis - Real-time eye diagrams and automated jitter decomposition
- 15.6" FHD Touchscreen - Large capacitive display with gesture support and Windows OS
- Automated Compliance Testing - Built-in test suites for USB 2.0, PCIe, and Ethernet standards
- Advanced Mathematical Processing - MATLAB embedded programming and sophisticated filter design
- Optional 60MHz AWG - Dual-channel arbitrary waveform generator with 625MSa/s output
Applications
- High-Speed Serial Bus & Signal Integrity
- Automotive Electronics Development
- Semiconductor & Embedded System Validation
- Data Acquisition and Analysis
Each Unit Includes
- 1 - Mixed Signal Oscilloscope (MSO8804HD)
- 2 - SMA Cables (12GHz, 1m) (UT-JLC12)
- 2 - BNC to SMA Adapters (50Ω) (UT-KJG12)
- 2 - BNC-BNC Cables (UT-L45)
- 1 - USB 3.0 Data Cable (UT-D30)
- 1 - Front Panel Protective Cover
- 1 - Region-Specific Power Cord
- 1 - Calibration Certificate
