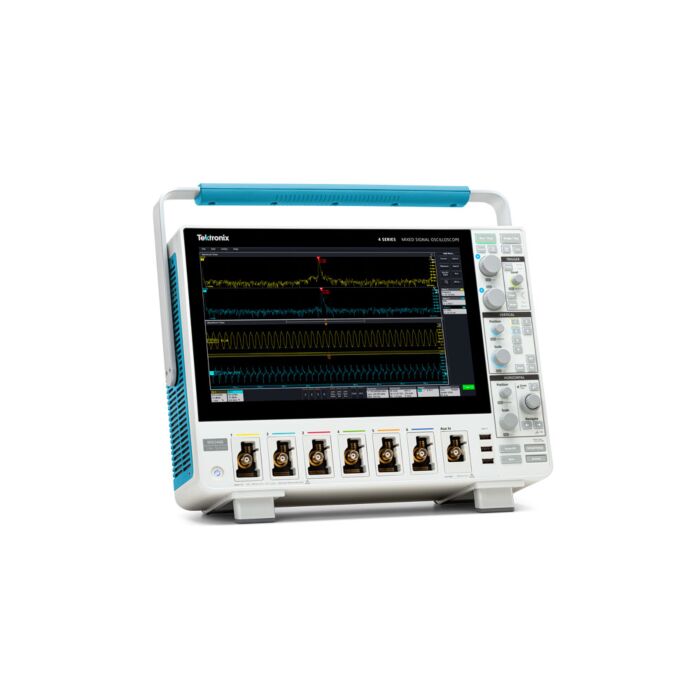

Tektronix MSO46B 4 Series Mixed Signal Oscilloscope, 6 FlexChannels

Product Highlights

4 Series Mixed Signal Oscilloscope; (6) FlexChannels with 31.25M record length, 1-year warranty, Certificate of Traceable Calibration Standard, (Bandwidth option required)

The 4 Series B MSO combines performance and analysis capabilities to address the vast majority of engineering challenges with an industry-leading intuitive user interface. The "B" version features a significantly faster processor system that speeds analysis and makes controls 2X more responsive. The 4 Series offers 4 or 6 analog channels with 12-bit ADCs, 200 MHz to 1.5 GHz bandwidth and up to 6.25 GS/s sample rate with record lengths of 31.25 or 62.5 Mpoints. Full sample rate and record length are available on all channels, at all times. Each input channel can be used for synchronized analog waveform display and spectrum analysis, or converted to 8 logic channels by connecting a logic probe for up to 48 digital logic channels. Powerful analysis and visualization tools, like FastFrame segmented memory, measurement and waveform histograms, and visual triggering are standard. It is available with a built-in 50 MHz arbitrary/function generator and decoding for over 25 serial protocols. Power analysis packages are also available to facilitate repeatable measurements on power supplies and 3-phase power converters. An array of available smart probes support a wide range of applications. A 13.3-inch high-definition capacitive touchscreen with improved viewing angle, and an award-winning intuitive user interface make the 4 Series B MSO a pleasure to use.

Features:

• Bandwidths from 200 MHz to 1.5 GHz
• 4 or 6 input channels
• 6.25 GS/s sample rate
• 12-bit ADCs
• 31.25 or 62.5 Mpoints record length
• Each channel can be used for synchronized analog waveforms and spectrum analysis, or converted to 8 logic channels
• Industry-leading user interface
• 13.3 inch, HD touchscreen
• Decoders available for over 25 serial protocols
• Wide range of available probes

Each Unit Includes

• One passive analog probe per channel: TPP0250 250 MHz probes with 200 MHz bandwidth models; TPP0500B 500 MHz probes with 350 MHz and 500 MHz bandwidth models; TPP1000 1 GHz probes with 1 GHz and 1.5 GHz models
• Installation and safety manual (translated in English, Japanese, and Simplified Chinese)
• Embedded help
• Power cord
• Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration
• One-year warranty covering all parts and labor cost on the instrument and the included probes
