RIGOL Active Differential Probes are engineered for high-frequency solutions, capable of measuring differential and single-ended signals with excellent common-mode rejection. Ideal for RF and digital systems, they ensure unmatched precision in signal integrity tests and high-speed circuit debugging.
The PVA9000 series are active probes with up to 16 GHz bandwidth designed for high frequency test applications. They can measure differential and single-ended signals effectively with better common mode rejection. This series supports hand-held probe heads and solder-in probe heads to enhance adaptability and usability. The probe tip spacing can be finely adjusted to accommodate different test point spacings.
The brand new PVA9100, 10GHz high-bandwidth active differential probe is developed for the research development and validation of high-speed digital interfaces such as PCIe 3.0,USB 3.2 SATA 3.0 and DDR4, providing unprecedented signal fidelity, empowering you to stay ahead in technological innovation.
The PVA9000 series is compatible with the interface of RIGOL DS80000 series oscilloscopes and can be recognized and configured automatically.
- 10-GHz active differential probe
- For use with Rigol DS80000 series oscilloscopes
- Supports solder-in and handheld probe heads
- Cable length: 47 inches
Applications
- High-Speed Digital Interfaces
- Signal Integrity Testing
- High-Speed Circuit Debugging
- Differential and Single-ended Signal Measurement

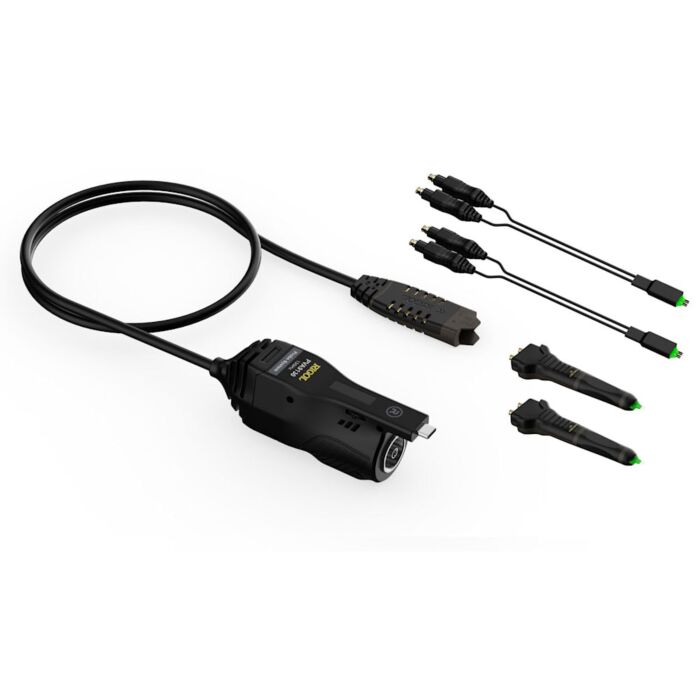

Each Unit Includes
- Active Probe
- Solder-in Probe Heads (3x and 6x attenuation)
- Handheld Probe Heads (3x and 6x attenuation)
- Lead Resistors
- Trim Gauge
- Probe Bag
