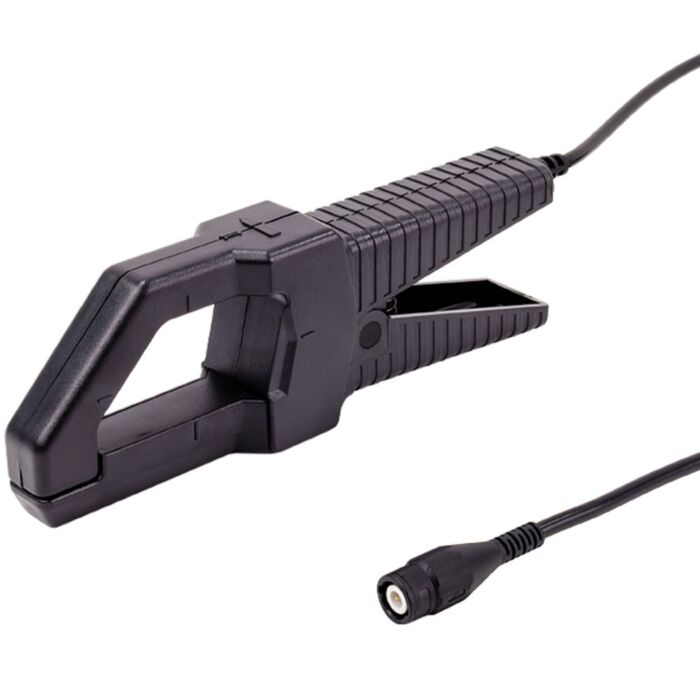

The MD361 is a passive AC current probe that turns any oscilloscope into a window on your power system. Clamp it around a cable or busbar, connect the BNC to any scope AEMC or otherwise and read live current waveforms at 1 mV AC per 1 A AC. No external power, no batteries, no setup. Just open the jaw and measure.
Built for field techs, motor and dive troubleshooters, and power-quality work, the MD361 delivers the waveform fidelity you need to actually see what's happening inrush spikes, PWM switching, harmonic distortion, phase imbalance across a 5 Hz to 10 kHz range tuned for real-world power and motor signals.
- AC current probe for VFD troubleshooting, power quality analysis, industrial current measurements
- Max cable size/bus bar: 1.18in / 2.48 x 0.20in
- Frequency Range/Bandwidth: 5 Hz to 10 kHz
- Output signal: 1 mV/A
- BNC output connects directly to oscilloscopes
- Unique jaw opens wide and reaches into tight spots, clamping oversized busbars and large conductors
- Connect DMM with BNC Female to 4 mm Banana Male Adapter
- CAT III 600 V and CAT IV 300 V; Compliant with IEC 61010-1 and IEC 61010-2-032 for current sensors
Applications
- Load Monitoring
- Industrial Maintenance
- Power Quality & Diagnostics
- Motor & Drive Troubleshooting
- Cable & Conductor Verification
Each Unit Includes
- AC Current Probe (MD361)
- Current probe
- Safety sheet
- Multilingual user manual
