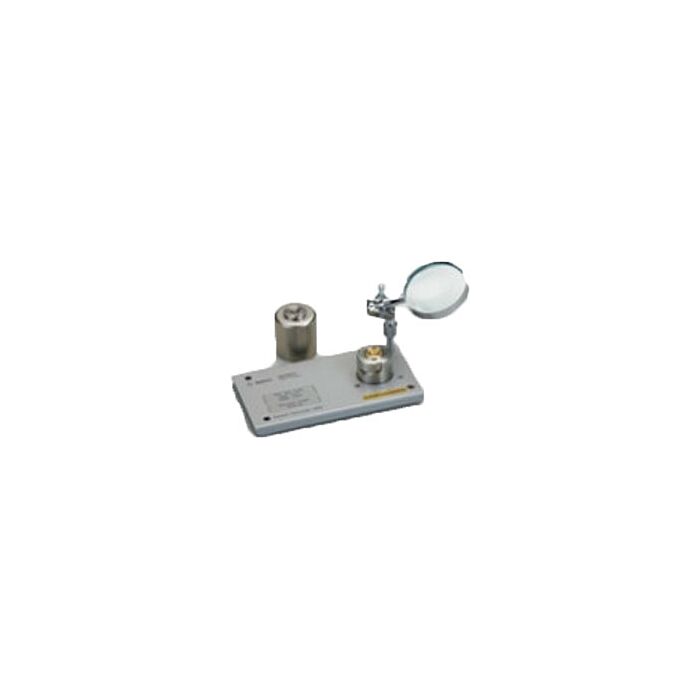

Keysight 16196D Parallel Electrode SMD Test Fixture
Parallel Electrode SMD Test Fixture
Order #: 16196D
Mfg #: 16196D
$24,259.00
The 16196D surface mount devices (SMD) test fixture offers excellent repeatability and usability, with accurate correlation up to 3 GHz. 16196 series fixtures are custom designed to fit specific SMD sizes (see table below), and provide repeatable DUT positioning with reliable contacts to enable stable measurement results - reducing the possibility of operator-induced error. Traditionally, SMD inductor evaluation up to 3 GHz has been difficult to implement - now with the 16196 series, it’s easy to perform accurate and repeatable measurements.
Product Highlights
- Size 01005 (inch) / 0402 (mm)
- Specification of size L x W x H (mm) (0.4 ± 0.02) x (0.2 ± 0.02) x (0.11 to 0.22)
