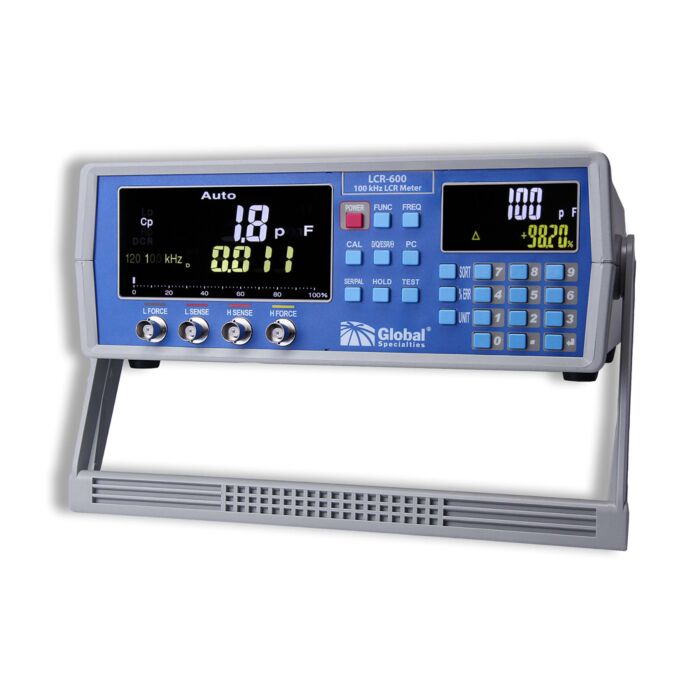

Cal Test Electronics LCR-600
100kHz High Precision LCR Meter Measures L,C and R
Order #: LCR-600
Mfg #: LCR-600
Special Price
$1,542.80
Regular Price
$1,624.00
Cal Test Electronics LCR-600
100kHz High Precision LCR Meter Measures L,C and R
Order #: LCR-600
Mfg #: LCR-600
Special Price
$1,542.80
Regular Price
$1,624.00
The LCR-600 is a high precision test instrument used for measuring the inductance (L), capacitance (C), and resistance (R) of an electrical component. The LCR-600 has an operational frequency range of 100 Hz to 100 kHz and a basic measurement accuracy of 0.3%. There is a dual LCD display, measurement voltage fixed at 0.6 V, auto-detect function, and open-circuit /short-circuit compensation. Use the meter to check ESR values of capacitors and inductors, sort and select components, identify unknown components, and measure general LCR values.
Availability: Ships in 3-4 weeks
Product Highlights
- Measures: Ls, Lp, Cs, Cp, Rs, Rp, D, Q,
- ESR, EPR, Z, Θ, DCR
- Frequency range: 100 Hz to 100 kHz
- Auto range
- Auto detect
- Sorting function
- Open circuit compensation
- Short circuit compensation
- Basic accuracy of 0.3%
- Two displays
- Display hold
