The UTG4000X series high-performance function generators utilize DDS technology to produce precise, stable waveforms. They feature high-speed square waves, comprehensive analog/digital modulation, sweep, burst modes, and a frequency counter. With an intuitive graphical interface and four-channel output, they are versatile tools for education and testing, enhancing workflow efficiency. UTG4000X series function/arbitrary waveform generator provides output frequencies of 100 MHz, 160 MHz and 250 MHz to meet a wide range of signal frequency requirements, with all four channels supporting fully independent output.
UTG4000X series function/arbitrary waveform generator comes standard with advanced waveform output capabilities, including multi-pulse, multi-tone, sequence, pattern, I/Q, and expression-based waveforms. Generates multi-pulse signals with independently adjustable edge times and pulse widths, enabling rapid and precise multi-pulse testing.

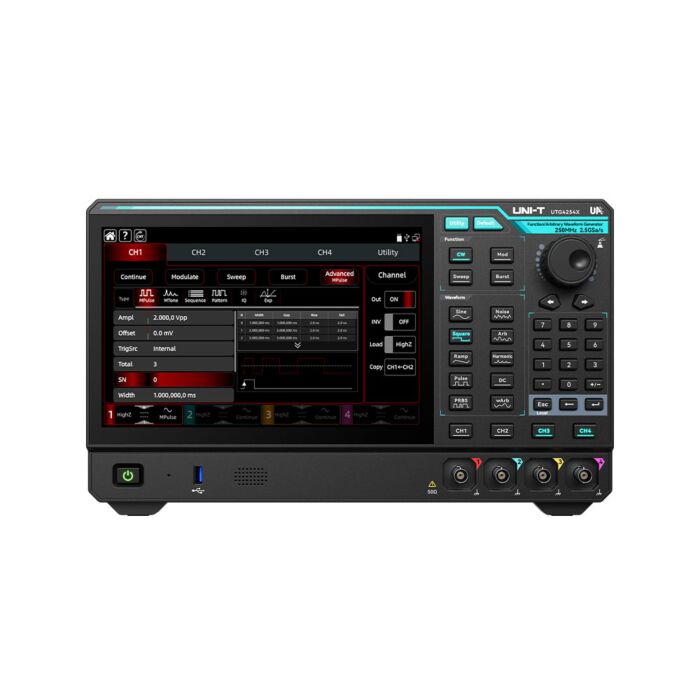

The UNI-T UTG4254X is a high-performance, dual-channel arbitrary waveform generator in the UTG4000A Performance-Series with a maximum sine waveform output frequency of 200 MHz. It features a high sampling rate and vertical resolution, making it suitable for a wide range of signal emulation applications.
- Channels: 2
- Maximum Frequency: 250 MHz
- Sample Rate: 500 MSa/s
- Vertical Resolution: 16 bits
- Arbitrary Wavelength: 32 Mpts
- Display: 8-inch TFT LCD touch screen
- Waveforms: Sine, square, pulse, ramp, noise, DC, and built-in arbitrary waveforms
- Modulation Types: Comprehensive analog and digital modulation capabilities including AM, FM, PM, FSK, ASK, PSK, and PWM
- Interfaces: Standard ports include USB Host, USB Device, LAN, 10 MHz Input/Output, Frequency Counter, FSK Trig, and Modulation In.
Applications
- Electronic Design and Debugging
- Communication System Testing
- Semiconductor and Component Characterization
- Education and Scientific Research
- Automotive and Industrial Electronics
- General Purpose Signal Generation
Each Unit Includes
- 1 - 250MHz 2Ch Performance-Series Arbitrary Waveform Generator (UTG4254X)
- 1 - Power Cord
- 1 - BNC Straight Line
- 1 - USB2.0 Printing Cable
