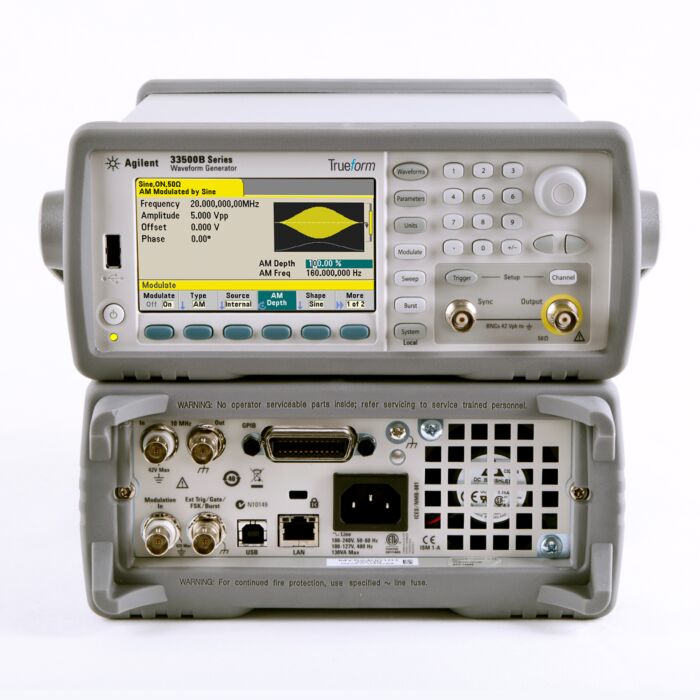

Keysight 33512B Waveform Generator, 20MHz, 2 Channel with Arb
Order #
33512B
|
Mfg #
33512B
Tariff fees or manufacture imposed surcharges may be applicable.
This product is available for shipping to the United States and Canada only.
Overview
Product Highlights
- Unmatched capabilities for generating a full range of signals for your most demanding measurements
- Sine waves with 5x lower harmonic distortion for more pure signals
- Pulses up to 20 MHz with 10x less jitter for more precise timing
- Optional point-by-point arbitrary waveform capability with sequencing for more accurate representation of user-defined signals
- 160 MSa/s sampling rate for higher time resolution arbitrary waveforms
- 16-bit resolution with 1 mVpp to 10 Vpp amplitude for greater amplitude accuracy
- 1 MSa/channel standard waveform memory, optional 16 MSa/channel for your longest waveforms
- USB, LAN (LXI-C), GPIB standard for quick and easy connectivity to PC or network
- Includes BV0002B Function Generator app
