The DL3000 series is a cost-effective, economical programmable DC electronic load with a friendly human-machine interface and excellent performance specifications. It provides a variety of remote communication interfaces to meet diverse testing needs for design and testing. A wide range of solutions are available for a wide range of industries including automotive electronics, aerospace and fuel cells.

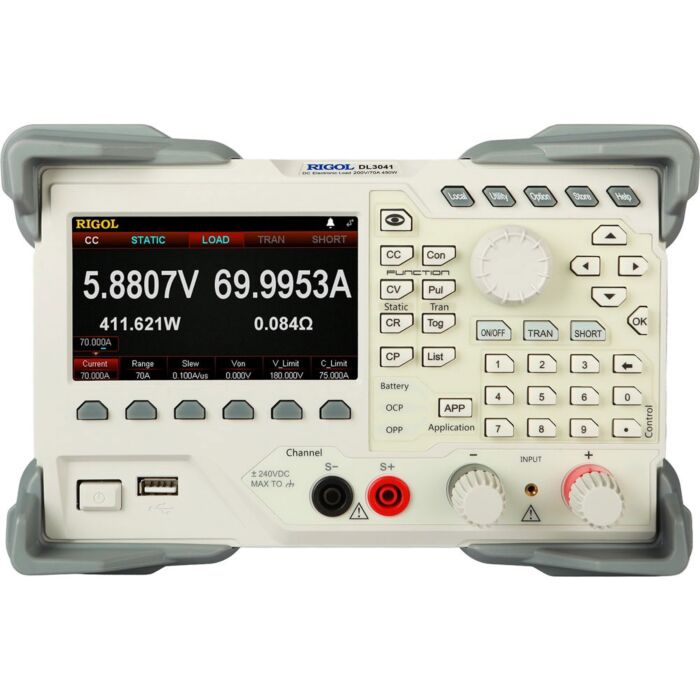

RIGOL DL3041 is a high-performance programmable DC electronic load, capable of sinking up to 200V, 70A, and a total power of 450W. This model is the most powerful in the series and offers the best performance, with a dynamic mode frequency up to 30 kHz, a current slew rate up to 5 A/µs, and high readback resolution. With standard LAN and Digital I/O interfaces, it is the ideal solution for the most demanding tests in sectors such as automotive, fuel cells, and high-current power electronics.
- Rated Power: 450 W
- DC Input: up to 200 V / 70 A
- 4 Static Modes: Constant Current (CC), Constant Voltage (CV), Constant Resistance (CR), Constant Power (CP).
- 3 Dynamic Modes: Continuous, pulsed, toggled (up to 30 kHz).
- Superior Slew Rate: Adjustable up to 5 A/µs.
- High Readback Resolution: 0.1 mV, 0.1 mA.
- Test Functions: Includes battery test, OCP, OPP, and short-circuit function.
- Complete Interfaces: Standard USB Host & Device, RS232, LAN, and Digital I/O.
Applications
- General-purpose testing in the R&D lab
- DC power supply industry, such as regulated power supply, constant current power supply, switching mode power supply (SMPS), module power supply, power adapter, etc.
- Battery industry, such as various batteries and cell batteries
- Charger industry, such as battery charger and cell phone charger
- Power electronic device industry, such as MOSFET, IGBT, capacitor, and ballast resistor
- Teaching experiment
Each Unit Includes
- DL3041: single channel, DC 200 V/70 A, total power up to 450 W
- Power Cord
- USB Cable
- A spare fuse
- Quick Guide
