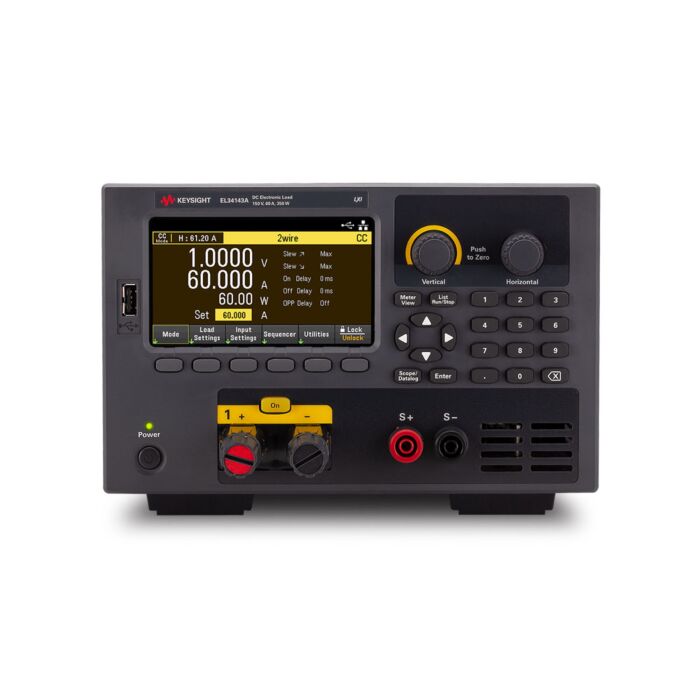

Keysight EL34143A DC Electronic Load, single - input: 150V, 60A, 350W: LAN, USB
DC Electronic Load, single - input: 150V,60A,350W: LAN,USB

Order #: EL34143A

Mfg #: EL34143A

Questions about availability or need help? Contact Us:

(800) 633-0561
$3,603.00

Keysight EL34143A DC Electronic Load, single - input: 150V, 60A, 350W: LAN, USB

DC Electronic Load, single - input: 150V,60A,350W: LAN,USB

Order #: EL34143A

Mfg #: EL34143A

$3,603.00
Availability: Ships in 4-6 weeks
This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.

Product Highlights

The EL30000 Series bench DC electronic loads provide superior performance in compact bench form factor. A single and dual-channel model is available with up to 600 W - ideal for design verification of consumer power supplies, batteries, battery modules, solar panels, LED drivers, and power converters. You can easily characterize wide-bandgap semiconductor components such as MOSFET and IGBT.

The EL30000 Series bench DC electronic loads are fully SCPI programmable with built-in USB, LAN, and optional GPIB interfaces. Advance features include scope view, data logging, sequencing, and more, enabling you to measure, capture, and quickly display your results.

Measures accurately

  • Integrated voltmeter and ammeter
  • Precise programming / readback accuracy
  • Built-in 2-wire or 4-wire remote sense technology

Captures, stores, and transfers dynamic waveforms

  • Data logger that is configurable
  • Log voltage, current and energy
  • Internal or external memory storage
  • Export to .CSV for post analysis

Displays like an oscilloscope for precise analysis

  • Performs precise transient analysis with scope function
  • Digitizes voltage and current
  • Displays results on a 4.3-inch color LCD screen

Advanced characterization

  • Use operating modes: constant current (CC), constant voltage (CV), constant resistance (CR), constant power (CP)
  • Improve measurements with low current range
  • Dynamic load profiles with List (continuous, pulse, or toggle)
  • Adjust transient steps with programmable slew rate
  • Modern connectivity: LAN (LXI Core), USB and GPIB (optional)
