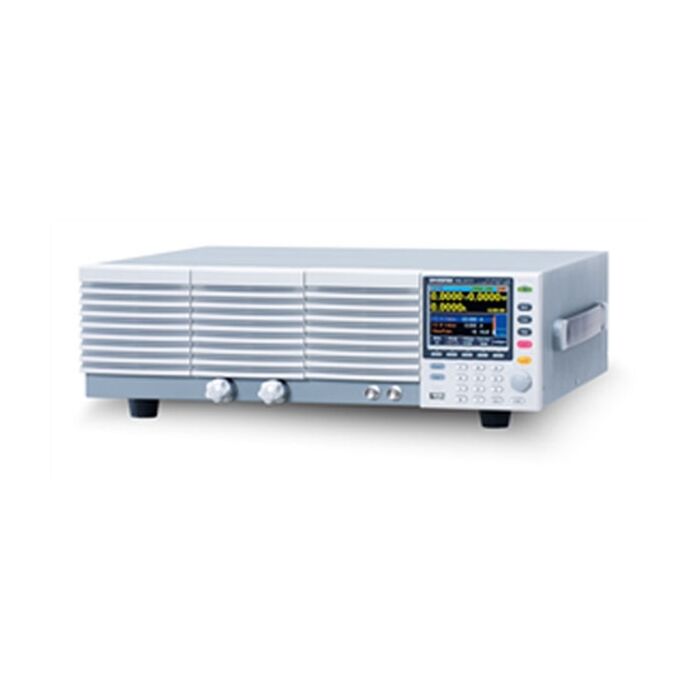

GW Instek PEL-3111 1050W Programable Electronic Load

Product Highlights

• Operating voltage (DC)：1.5V~150V
• Operating Mode : C.C / C.V / C.R / C.P / CC+CV / CR+CV / CP+CV
• Parallel Connection of Inputs for Higher Capacity (Max : 9,450W)
• Support of High Slew Rate：Max 16A/us
• Run Program Function（GO/NO GO Test）
• Sequence Function for High Efficient Load Simulations
• Commands are compatible with Kikusui PLZ-4W model.
• Dynamic(Switching) Function：0.0166Hz ~20kHz
• Soft Start Function：Off / On(1~200ms, Res：1ms)
• Adjustable OCP / OVP / OPP / UVP Setting
• Short Circuit Function
• Timer function : Elapsed Time of load on
• Cut Off Time(Auto Load Off Timer )：1s to 999h 59min 59s or Off
• External Channel Control / Monitoring via Analog Control Connector
• Setup Memories：100 sets
• 3.5 Inch TFT LCD Display
• Multi Interface : USB 2.0 Device / Host , RS-232 , GPIB (Optional)

Each Unit Includes

• User Manual CD x 1
• Power Cord
• Protection cover
• Insulation sheet
