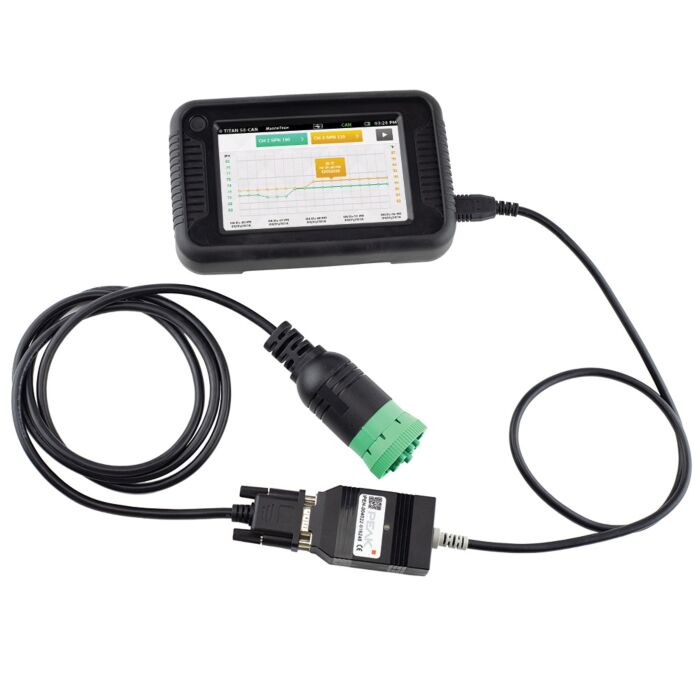

MadgeTech TITAN S8-CAN W/ 16-PIN CONNECTOR
Data acquisition system with 16-Pin OBDII Connector

Order #: TITAN-S8-CAN-W-16-PIN-CONNECTOR

Mfg #: 902301-00

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,909.53

MadgeTech TITAN S8-CAN W/ 16-PIN CONNECTOR

Data acquisition system with 16-Pin OBDII Connector

Order #: TITAN-S8-CAN-W-16-PIN-CONNECTOR

Mfg #: 902301-00

$1,909.53
Availability: Ships in 3-4 Weeks
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

Data acquisition system for diesel engine monitoring and recording with 16-Pin OBDII Connector

The Titan S8-CAN is a state-of-the-art data acquisition system designed for diesel engines. Capable of simultaneously measuring and recording up to 23 suspect parameter numbers, the Titan S8-CAN is an all-in-one solution for diesel engine testing.

  • Ability to Monitor and Record SAE J1939 Compliant CAN Messages
  • Display & Record 23 SPN
  • Ideal for Engine, Road & Diagnostic Testing

The Titan S8-CAN is a remote access data acquisition logger designed to easily connect to the Controller Area Network (CAN) via its diagnostic port.

This versatile device provides the capability to monitor and record SAE J1939 compliant CAN messages from Tier 1 through Tier 4 final diesel engines. Once connected, the Titan S8-CAN has the ability to display and record up to 23 suspect parameter numbers (SPN) simultaneously during engine, road, and diagnostic testing.

The Titan S8-CAN is an all-in-one solution, allowing users to view and record simultaneously without the need for a PC or software. With 1 GB of internal memory, the Titan S8-CAN can store up to 5,000,000 readings which can be download to a USB for further analysis.

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Channels 24: 23 can be configured for CAN data. Channel 1 cannot be CAN, and channels 2-8 can be used for direct measurements. If 1-8 are configured for direct measurements, 9-24 can still be CAN channels.
Battery Life 7 to 9 hours continuous use
Material PC / ABS Enclosure, TPE Protective Boot
Dimensions 6.65 in x 4.40 in x 1.41 in (168.9 mm x 111.8 mm x35.8 mm) Data logger only. 5 in touch screen.
IP Rating IP20
