UT673PV solar MPPT meter can effectively identify any abnormalities in solar panels by testing their maximum power, peak power voltage, peak power current, open circuit voltage, and short circuit current.

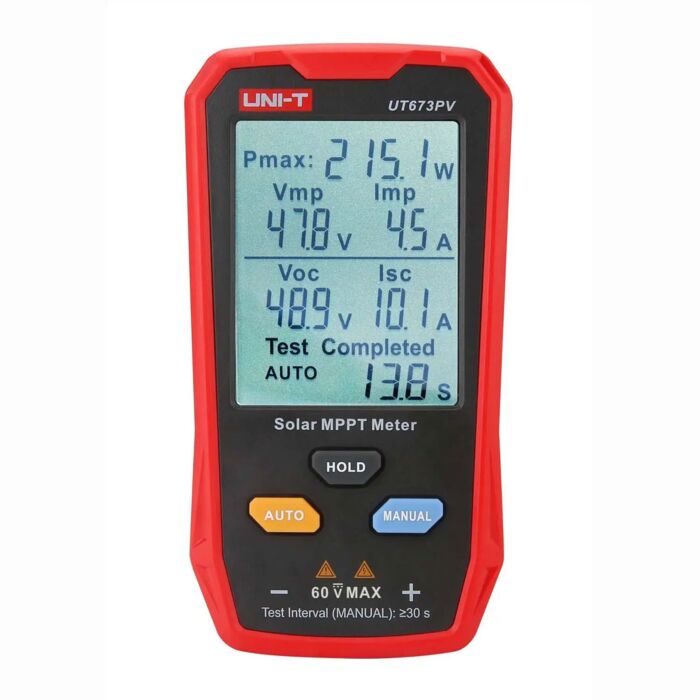

The UNI-T UT673PV Solar MPPT Meter is an advanced diagnostic tool designed specifically for solar professionals who demand precise measurement capabilities in a portable package. This professional-grade meter effectively identifies abnormalities in solar panels by simultaneously measuring maximum power (up to 800W), peak power voltage, peak power current, open circuit voltage, and short circuit current—all essential parameters for ensuring optimal solar panel performance.
With its large color LCD screen displaying all critical measurements at once, the UNI-T UT673PV enhances operational efficiency for photovoltaic manufacturers, installers, and maintenance technicians. Powered directly by the solar panel being tested and featuring MC4 connectors, this lightweight, handheld device eliminates the need for batteries while providing immediate insights into solar panel health and performance anywhere in the field.
- High Accuracy Measurements: Maximum power range of 5-800W with ±(1.0%+10) accuracy
- Comprehensive Testing Capabilities: Measures peak power current (0-35A), peak power voltage (12-60V), open circuit voltage (12-60V), and short circuit current (0-35A)
- Large Color LCD Display: Spacious 52 x 66mm screen simultaneously shows all essential measurements
- Battery-Free Operation: Powered directly by the solar panel being tested
- Integrated MC4 Connectors: Ready to connect to solar panels without additional adapters
- Manual MPPT Test Functionality: For precise maximum power point tracking analysis
- Data Hold Function: Captures and displays specific readings for analysis
- Multiple Protection Systems: Includes reverse polarity, overvoltage, overcurrent, overtemperature, and overpower protection
- Compact and Portable Design: Measures just 143 x 74 x 25mm for easy transport and field use
- CE Certified: Meets international quality and safety standards
Applications
- Solar Panel Manufacturing / Incoming Inspection
- Installation and Commissioning of PV Systems
- Maintenance / Diagnostics of Existing PV Systems
- Educational / Demonstration Uses in PV Training
Each Unit Includes
- 1 - Solar Pro MPPT PV Meter (UT673PV)
- 1 - MC4 Solar Panel Test Leads Set
- 1 - MC4 Connector Wrench
- 1 - User Manual
- 1 - Carrying Case
- 1 - Warranty Card
