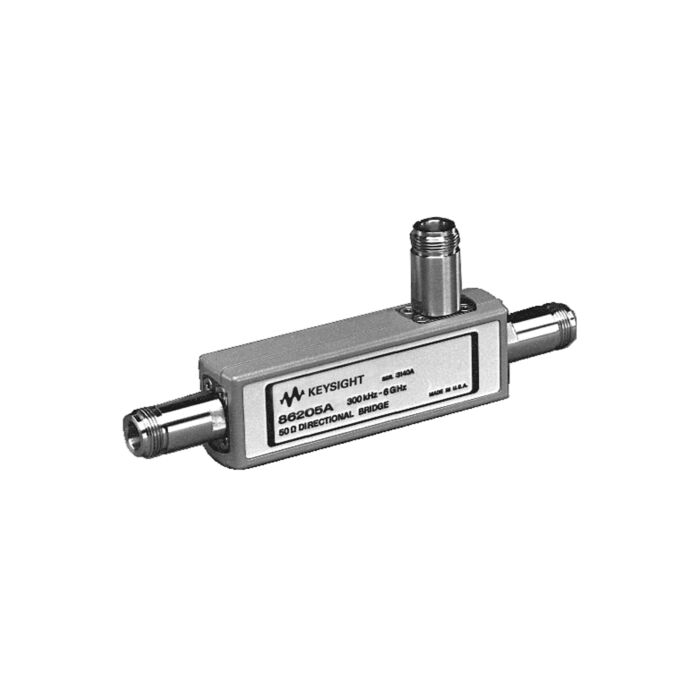

Keysight 86205A 50ohm RF Bridge, 300kHz to 6GHz

Order # 86205A

Mfg # 86205A

800-828-1470

$4,511.00

Keysight 86205A 50ohm RF Bridge, 300kHz to 6GHz

Order # 86205A | Mfg # 86205A

$4,511.00

Ships in 3-4 weeks

Also Available:

Rental

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Coupling factor: 16 dB + 0.15 dB/GHz (< 3 GHz); 16.5 dB - 0.20 dB/GHz (> 6 GHz)
Directivity: 30 dB to 0.3 MHz, 40 dB to 2 GHz, 30 dB to 3 GHz, 20 dB to 5 GHz, 16 dB to 6 GHz
Return loss: 23 dB to 2 GHz, 20 dB to 3 GHz, 18 dB to 5 GHz, 16 dB to 6 GHz
Insertion loss: 1.5 dB + 0.1 dB/GHz
