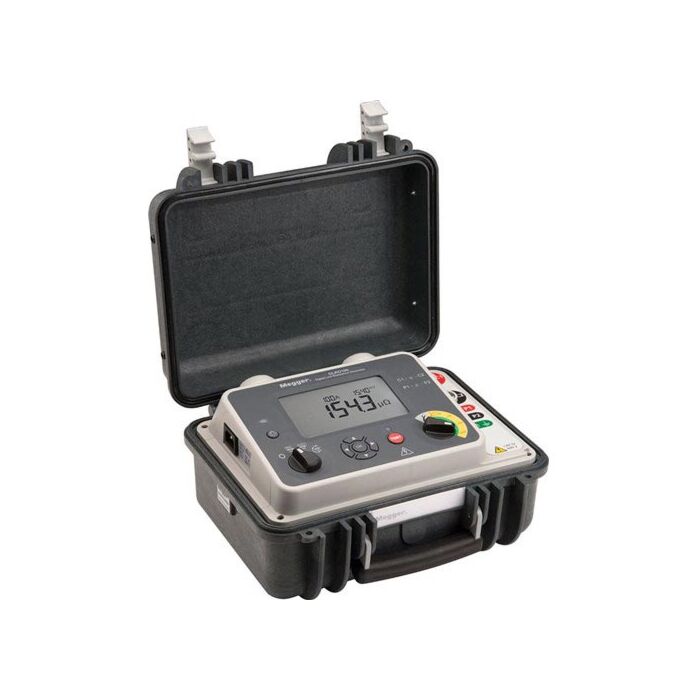

Megger DLRO100HB
LG2-P3 Digital Low Resistance Ohmeter,100A,Mains Powered

Order #: DLRO100HB

Mfg #: 1004-959

Questions about availability or need help? Contact Us:

(800) 633-0561
$12,978.00

Megger DLRO100HB

LG2-P3 Digital Low Resistance Ohmeter,100A,Mains Powered

Order #: DLRO100HB

Mfg #: 1004-959

$12,978.00
The DLRO100H and HB are the top-of-the-line models of the DLRO100 series of digital low resistance ohmmeters. Both the H and HB model runs on line power, while HB model includes an integrated Li-ion battery that is able to supply a constant 100 A current for up to 200 automatic or manual tests, enhancing productivity in remote locations.
Availability:
In stock

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States and Canada only.

The integral Li-on battery supplies a constant 100A current for up to 30 minutes or up to 360 Manual/Auto tests to enable enhanced productivity in remote locations. With a focus on user safety, advanced design features ensure the safe operation of the instrument in the most adverse conditions, including a CATIV 600V safety rating in accordance with IEC61010. The rugged design, intuitive interface and IP54 (lid open) rating ensure reliability and ease of use in the most arduous of conditions.

Product Highlights

  • integrated Li-ion battery
  • Mains
  • DualGround - grounds both sides of the breaker under test
  • Rugged Design for Use in Demanding Environments
  • Adjustable 10-100A Output, 4 Terminal Measurement
  • 0.1μΩ to 2 Ω Measurement Range
  • 0.1μΩ Resolution
  • Accuracy of ±0.05 μΩ Between 0.1 μΩ and 10 μΩ, ±0.2% Between 10 μΩ and 2 Ω
  • CATIV 600V Safety Rating
  • Battery and Mains Powered
  • Battery Capacity - 360 Single Tests or up to 30 Minutes Continuous 1c00A output
  • Memory Storage USB Download Capability
  • Adjustable Current Ramp Rates and Test Duration
  • Low Ripple D.C.
  • IP Rating 67 (Lid Closed) IP54 (Lid Open - Battery Operation Only)
  • Large, Clear LCD Display
  • Time and Date Stamped Memory for Recording of Results (999 Readings)

Each Unit Includes

  • Line Cord
  • Quick Start Guide
  • Certificate of Test
  • Calibration Certificate
  • Information CD
