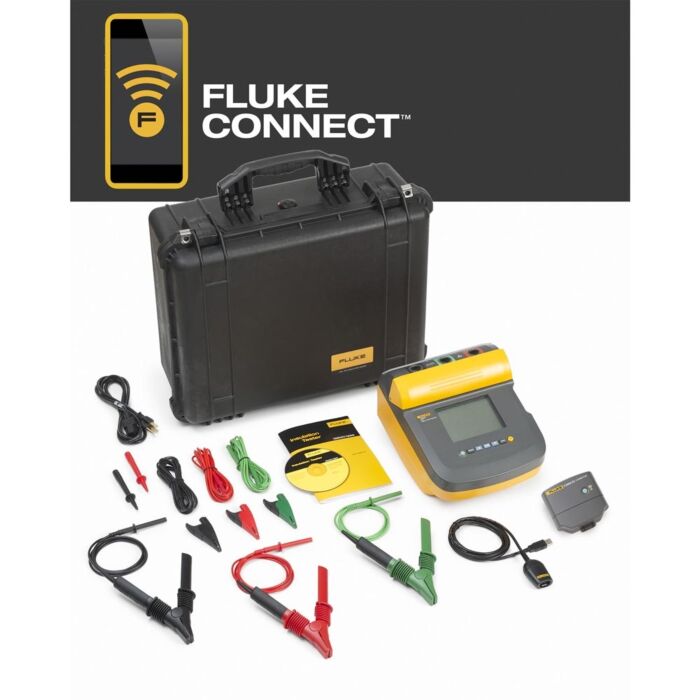

Fluke 1550C FC KIT W/IR3000 5K Insulation Tester Kit with IR3000 wireless data connector
5K Insulation Tester Kit with IR3000 wireless data connector

Order #: 1550C-KIT-IR3000FC

Mfg #: 4977457

Questions about availability or need help? Contact Us:

(800) 633-0561
$9,694.07

Fluke 1550C FC KIT W/IR3000 5K Insulation Tester Kit with IR3000 wireless data connector

5K Insulation Tester Kit with IR3000 wireless data connector

Order #: 1550C-KIT-IR3000FC

Mfg #: 4977457

$9,694.07
The Fluke 1550C and 1555 Insulation testers, combined with the ir3000 FC connector and Fluke Connect, allow users to perform advanced insulation testing for preventive and PdM tasks.
Availability: Ships in 3-4 weeks
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Evaluate the trends, eliminate the doubt

The Fluke 1550C insulation resistance tester offers digital insulation testing up to 5 kV, making them ideal for testing a wide range of high voltage equipment including switchgear, motors, generators and cables.

Fluke insulation testers can now conduct the entire range of test voltages specified in IEEE 43-2000 with a best in class, 3 year warranty and CAT IV 600 V safety rating. With measurement storage and PC interface, the 1550C is the perfect tool for preventive or predictive maintenance programs designed to identify potential equipment failures before they occur.

The Fluke 1555C Tester together with the IR3000 FC connector and Fluke Connect App allow users to perform advanced insulation testing by wirelessly transferring test results from the tester to Fluke Connect which eliminates error-prone paperwork and saves your technicianÍs time. Kit includes industrial hard case and high voltage test lead.

Product Highlights

  • Test voltages up to 5 kV provides solutions for all applications
  • CAT IV 600 V safety rating
  • Voltage breakdown detection alerts the user that voltage is present and gives the voltage reading up to 600 V ac or dc for increased user safety
  • Selectable test voltages in 50 V steps from 250 to 1000 V, and 100 V steps 1000 V
  • Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
  • Long battery life gives the user over 750 tests between charges
  • Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
  • Guard system eliminates the effect of surface leakage current on high-resistance measurements
  • Large digital/analog LCD for easy viewing
  • Capacitance and leakage current measurement
  • Ramp function for breakdown testing
  • Resistance measurements up to 2TΩ
  • Timer settings up to 99 minutes for timed tests
  • 3-year warranty

Each Unit Includes

  • Test cables with alligator clips (red, black, green)
  • Ruggedized Alligator clips
  • Infrared adapter with interface cable
  • FlukeView Forms basic CD-ROM
  • AC power cord
  • IP67 hard carrying case
  • Users manual on CD-ROM
  • Quick Reference card
  • English manual
  • USB-IR cable installation guide
  • FlukeView Forms installation guide
  • Certificate of calibration
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
  1. Fluke IR3000FC1550
    Fluke IR3000FC 1550 Wireless Data Transfer Connector for Fluke 1550 Series
    Wireless Data Transfer Connector for Fluke 1550 Series

    Order #: IR3000FC1550

    Mfg #: 4460451

    Availability: Ships in 3-4 weeks
    Special Price $395.31 Regular Price $459.67
  2. Fluke TL1550EXT 25' Extended Test Lead Set
    Fluke TL1550EXT 25' Extended Test Lead Set
    25' Extended Test Lead Set

    Order #: TL1550EXT

    Mfg #: 2032761

    Availability:
    In stock
    Special Price $641.50 Regular Price $720.79
  3. Fluke TLK1550-RTLC Integral Test Lead & 10kV Clamp for 1550X/1555 Insulation Testers
    Fluke TLK1550-RTLC Integral Test Lead & 10kV Clamp for 1550X/1555 Insulation Testers
    Integral Test Lead & 10kV Clamp for 1550X/1555

    Order #: TLK1550-RTLC

    Mfg #: 4112351

    Availability: Ships in 3-4 weeks
    Special Price $520.46 Regular Price $584.79
  4. Fluke TL1550B Test Leads with Alligator Clips (Red, Black, Green)
    Fluke TL1550B Test Leads with Alligator Clips (Red, Black, Green)
    Test Leads w/ Alligator Clips (Red,Black,Green)

    Order #: TL1550B

    Mfg #: 2788216

    Availability:
    In stock
    Special Price $383.68 Regular Price $431.11
  5. Fluke 9040
    Fluke 9040 Phase Rotation Indicator
    Phase Rotation Indicator

    Order #: FLUKE-9040

    Mfg #: 2435050

    Availability:
    In stock
    Special Price $502.91 Regular Price $584.79
Electrical Specifications
The tester's accuracy is specified for one year after calibration at operating temperatures of 0°C to 35°C. For operating temperatures outside the range (-20°C to 0°C and 35°C to 50°C), add ± .25% per °C, except on the 20% bands add ± 1% per °C.
Test voltage (DC)
250 V Range < 250 kΩ,
250 kΩ to 5 GΩ
5 GΩ to 50 GΩ
> 50 GΩ
Accuracy (± reading) Unspecified
5%
20%
Unspecified
500 V Range < 500 kΩ
500 kΩ to 10 GΩ
10 GΩ to 100 GΩ
> 100 GΩ
Accuracy (± reading) Unspecified
5%
20%
Unspecified
1000 V Range < 1 MΩ
1 MΩ to 20 GΩ
20 GΩ to 200 GΩ
> 200 GΩ
Accuracy (± reading) Unspecified
5%
20%
Unspecified
2500 V Range < 2.5 MΩ
2.5 MΩ to 50 GΩ
50 GΩ to 500 GΩ
> 500 GΩ
Accuracy (± reading) Unspecified
5%
20%
Unspecified
5000 V Range < 5 MΩ
5 MΩ to 100 GΩ
100 GΩ to 1 TΩ
> 1 TΩ
Accuracy (± reading) Unspecified
5%
20%
Unspecified
Bar graph range 0 to 1 TΩ (1550C) - 0 to 2 TΩ (1555)
Insulation test voltage accuracy -0%, +10% at 1 mA load current
Induced AC mains current rejection 2 mA maximum
Charging rate for capacitive load 5 seconds per μF
Discharge rate for capacitive load 1.5 s/μF
Leakage current measurement Range 1 nA to 2 mA
Accuracy ± (5% + 2 nA)
Capacitance measurement Range 0.01 μF to 15.00 μF
Accuracy ± (15% rdg + 0.03 μF)
Timer Range 0 to 99 minutes
Resolution setting 1 minute
Resolution indication 1 second
Live circuit warning Warning range 30 V to 660 V AC/DC, 50/60 Hz
Voltage accuracy ± (15% + 2 V)
Software specifications FlukeView Forms™ basic software requires a PC running Windows XP, Windows Vista , Windows 7 or Windows 8.
General Specifications
Display 75 x 105 mm
Power 12 V lead-acid rechargeable battery, Yuasa NP2.8-12
Charger Input (AC) 85 V to 250 V AC 50/60 Hz 20 VA
This Class II (double insulated) instrument is supplied with a Class 1 (grounded) power cord. The protective earth terminal (ground pin) is not connected internally. The extra pin is for added plug retention only.
Dimensions 269 x 277 x 160 mm (10.6 x 10.9 x 6.3 in)
Weight 3.7 kg (8.2 lb)
Temperature (operating) -20°C to 50°C (-4°F to 122°F)
Temperature (storage) -20°C to 65°C (-4°F to 149°F)
Humidity 80% to 31°C decreasing linearly to 50% at 50°C
Altitude 2000 m
Enclosure sealing IP40
Input overload protection 1000 V AC
Electromagnetic compatibility EN 61326
Safety compliance IEC 61010-1: Overvoltage category II, Pollution Degree 2.
IEC 61010-2-030: Measurement 600V CAT IV / 1000V CAT III
IEC 61557-1, IEC 61557-2
