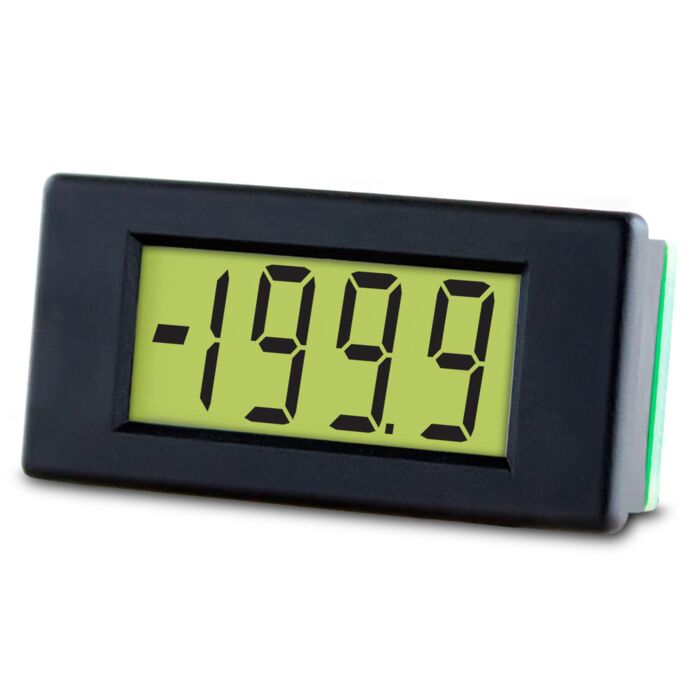

Lascar DPM 2AS-BL

Product Highlights

The DPM2AS-BL features a 200mV d.c. measurement range with auto-zero and auto-polarity. Decimal points are user selectable. The DPM 2AS-BL features a negative rail generator which enables the meter to measure a signal referenced to its own power supply GND. LED backlighting ensures excellent readability under low light conditions. The design of the panel meter's housing allows the module to be easily snapped into a panel. The module's low cost means it will suit high and low volume applications. The DPM2AS-BL is intended to replace the DPM2, DPM2S, DPM2-BL and DPM2S-BL in many applications, usually requiring only minor circuit modifications.

Features

• 8.25 mm (0.32") Digit Height
• 200mV d.c. Full Scale Reading
• 3.0 to 7.5V or 6.0 to 15.0V Operation
• Programmable Decimal Points
• LED Backlighting
• Auto-zero and Auto-polarity

Typical Applications

• Precision Instrumentation Systems
• Power Supply Monitoring
• Hand held instruments
• Panel-Mount Indication
• Low Power Voltage Measurement
