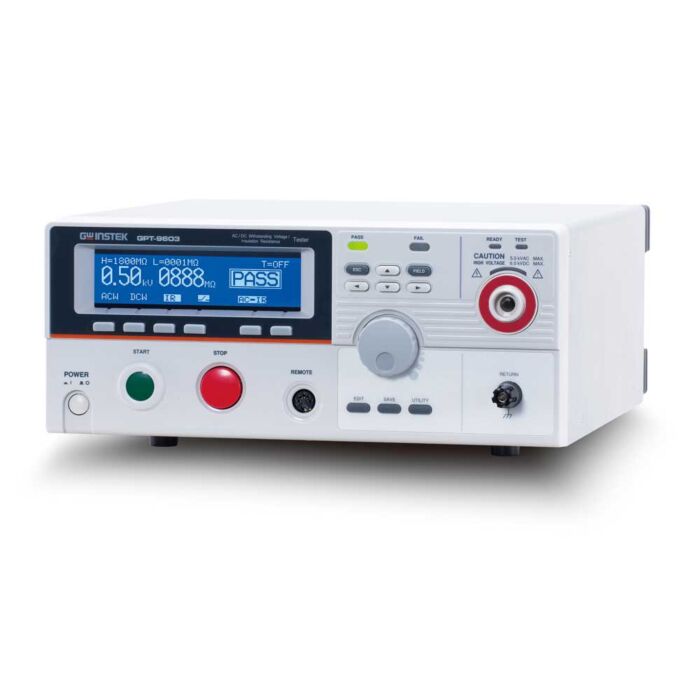

GW Instek GPT-9603 Value Hi-Pot Tester AC/DC/IR 100VA

The Instek GPT-9603 Electrical Safety Hi-Pot Tester supports tests of the safety standards such as IEC, EN, UL, CSA, GB, JIS and more. The GPT9603 unit is equipped with a PWM amplifier which impedes influence from the input AC voltage fluctuation and ensures a stable voltage output.

• Insulation Resistance: 50/100/250/500/1000 V DC, 2000 Mohms
• DC Withstanding: 6 kV DC, 6 mA
• AC Withstanding: 5 kV AC, 20 mA
• 100VA AC Test Capacity
• 240x48 Ice Blue Dot Matrix LCD
• Auto W-I and I-W Mode
• True RMS Current Measurement
• Zero Crossing Turn-on Operation
• Safety INTERLOCK Function
• PWM Switching Amplifier to Enhance the Power Efficiency and Reliable Testing

Each Unit Includes

• 1 - Electrical Safety Analyzer with Withstanding Voltage and Insulation Resistance, AC/DC (GPT-9603)
• 1 - Quick Start Guide
• 1 - CD with Complete User Manual
• 1 - Power Cord
• 1 - Interlock Key
• 1 - Remote Terminal Male Plug
• 1 - Test Lead (GHT-114)
