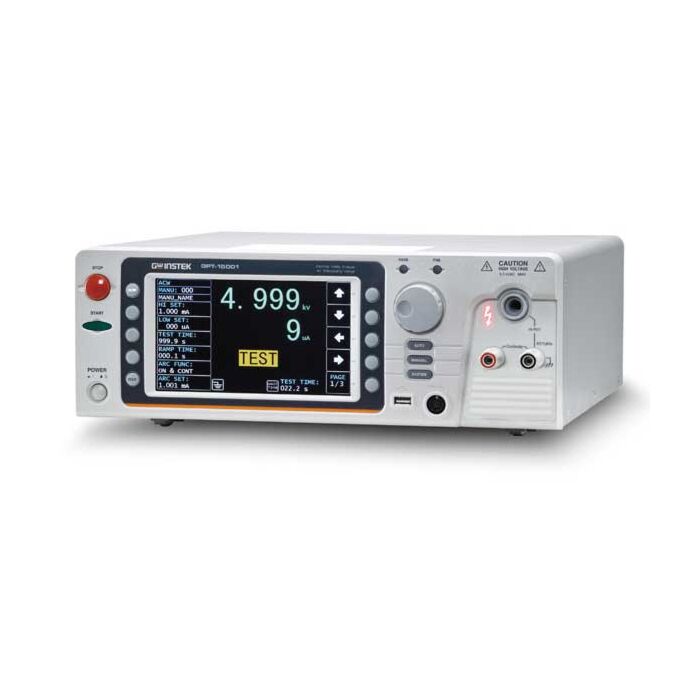

The Instek GPT-15012 Electrical Safety Analyzer is a DC withstanding voltage and insultation resistance tester. It is particularly suitable for the safety testing requirements of various high-voltage insulation products, such as energy storage/photovoltaic components, high-voltage relays, wires and cables, etc.
- DC Withstanding: 12kV
- Insulation Resistance: 5kV, 50GOhm
- Complies with IEC 61010-2-034 design requirements
- Features 7" TFT LCD
- Manual/Auto Mode
- RMS Current Measurement
- Zero Crossing Turn-on Operation
- Controllable Ramp-up & Ramp-down Time
- Capacitive Load Testing Capability up to 47uF
- Statistics & Analysis Function
- Sweep Function for DUT Characteristic Analysis
- Internal Storage & USB Storage available
- Rear panel output available
- Interface: RS-232C, USB host/device, Signal I/O and optional GPIB or LAN
- Universal power input
- Applications
- Safety testing of electrical product in manufacturing
- Power Cord
- Home Appliances
- Information Technology Equipment
- Medical Equipment
- Household and Similar Electrical Appliances
- Luminaires
- Audio, Video and Similar Electronic Apparatus
- Quality assurance verification
- Safety standard compliance pre-qualification in R&D
Each Unit Includes
- 1 - Electrical Safety Analyzer (GPT-15012)
- 1 - Quick Start Guide
- 1 - User Manual CD
- 1 - Calibration Traceable Certificate
- 1 - Power Cord
- 1 - Interlock Key
- 1 - Remote Terminal Cable (GHT-119)
- 1 - Test Leads (GHT-120)
