UT572 is for measuring earth resistance and soil resistivity. It can automatically check interface connection and detect interference voltage/frequency, with data hold and indication functions. It can perform 2/3/4-wire measurements for di?erent on-site applications, such as power equipment wiring and lightning protection equipment.

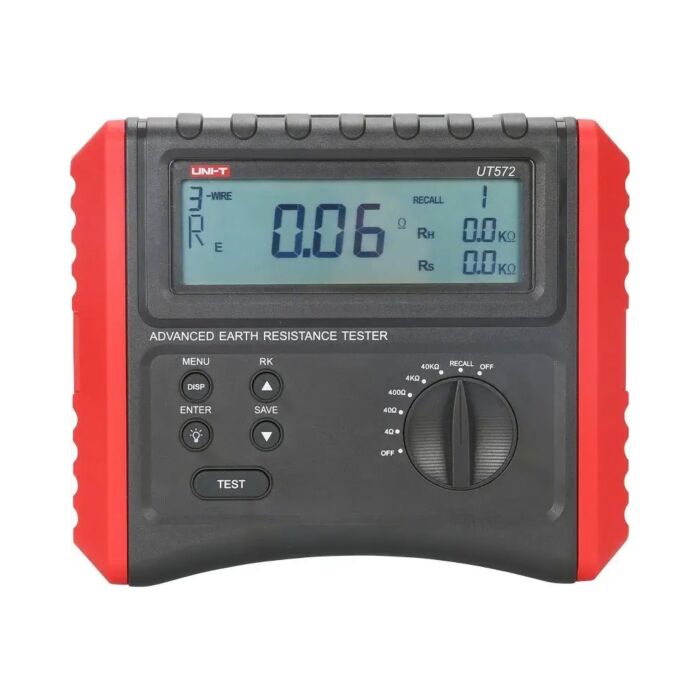

The UNI-T UT572 is a professional-grade earth resistance tester designed for precise ground system evaluation and soil resistivity analysis. Engineered for electrical contractors, power system technicians, and facility maintenance professionals, this advanced instrument delivers reliable measurements for power equipment wiring, lightning protection systems, and telecommunications infrastructure. With multi-wire testing capabilities, automated connection verification, and interference detection, the UT572 ensures accurate ground resistance evaluation in diverse field conditions to maintain safety standards and electrical system integrity.
The UNI-T UT572 delivers exceptional measurement precision with dual test frequencies (94Hz and 128Hz), enabling accurate earth resistance readings even in environments with electrical interference. With measurement ranges spanning from 4Ω to 40kΩ and resolution down to 0.01Ω, it provides the detailed data necessary for comprehensive ground system evaluation. The tester automatically detects potentially disruptive interference voltage up to 50V and identifies frequencies between 40Hz-500Hz that could affect measurement integrity. The specialized soil resistivity function allows precise evaluation of ground conditions for new installations, with adjustable test distances from 1m to 40m, providing critical data for optimal grounding electrode placement. For advanced diagnostics, the UT572 includes dedicated RH and RS testing capabilities to identify individual electrode contributions to overall resistance, along with compensating resistance (RK) evaluation to account for test lead effects in high-precision measurements.
- Versatile Multi-Wire Testing: Supports 2-wire, 3-wire, and 4-wire measurement methods for different on-site applications
- Dual Measurement Functions: Tests both earth resistance (Re) and soil resistivity (p) with high accuracy
- Automatic Interface Verification: Checks connection integrity before measurements to ensure reliable results
- Interference Detection: Identifies and measures disturbance voltage and frequency that could affect readings
- Precision Measurement: Accuracy of ±(3%+5) across multiple resistance ranges up to 40kΩ
- Data Storage Capability: Saves up to 20 measurement sets for documentation and analysis
- Comprehensive Testing Kit: Includes earth spikes, long test leads (up to 40m), and alligator clips for complete field testing
- Professional Safety Rating: CAT III 600V certification for safe operation in industrial environments
Applications
- Earth Resistance Testing
- Soil Resistivity Analysis
- Safety & Maintenance
- Technical Capabilities
- Operational Range
Each Unit Includes
- 1 - 4-Wire Ground Resistance Test Kit (UT572)
- 4 - Earth Spikes
- 2 - Simple Test Leads with Alligator Clips (1 Double Plugs, 1 Single Plug)
- 1 - Standard Test Leads Set with Alligator Clips (40m red, 20m red, 20m black, 10m yellow, 5m green)
- 1 - Elastic Strap
- 8 - Batteries (1.5V LR6)
- 1 - Carrying Bag
- 1 - User Manual
