Product Highlights

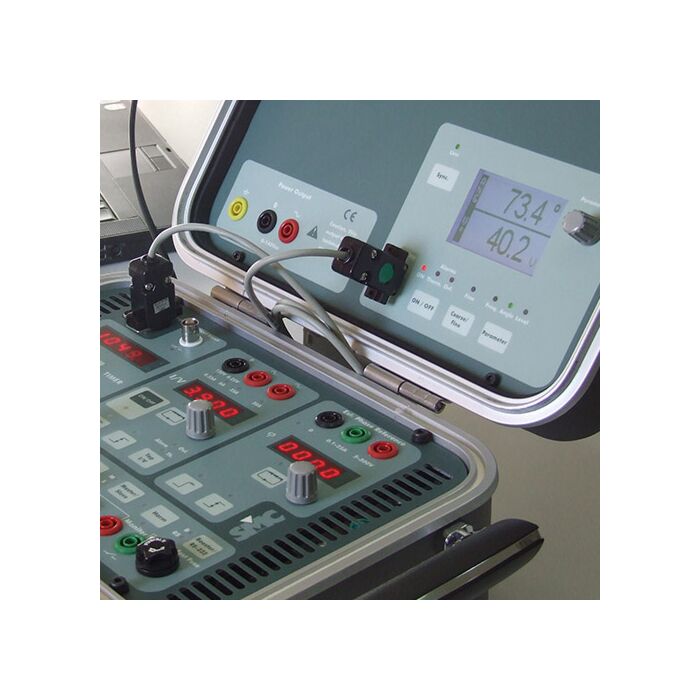

This electronic, independent source can be adjusted in amplitude, frequency, and phase angle. It comes installed as standard with the ‘Pro’ versions of the PTE sets, but it can also be purchased separately and mounted by the user inside the unit’s lid in a few minutes.
The PTE-FCN will dramatically increase the relay types that can be tested, usually avoiding unnecessary investment in three-phase equipment. The PTE-50-CE Pro, for example, is an unbeatable single-phase test set for directional, frequency, synchronisation and generator protection relays.
CHARACTERISTICS
- Output power: 100 VA
- Current: up to 50A – voltage: up to 150V
- Selectable 1st to 7th harmonics
- Adjustable phase angle: 0 – 359.9º
- Second voltage (Pro): 30 VA, 0-140V, 0-359.9º, 40-70 Hz
- 1-ms resolution digital programmable chronometer
- External synch input
- RS-232 communications port and BUS-PTE
- Multi-mode trip detection
- Software-based adjustment and calibration
- IP-65 protective case
- 13.5 kg (Pro: 14.5 kg)
APPLICATIONS
- Overcurrent relays
- Over / undervoltage relays
- Power factor relays
- Ground protections
- Reclosing relays
- Distance / impedance / directional relays
- Frequency relays
- Synchronizing relays
