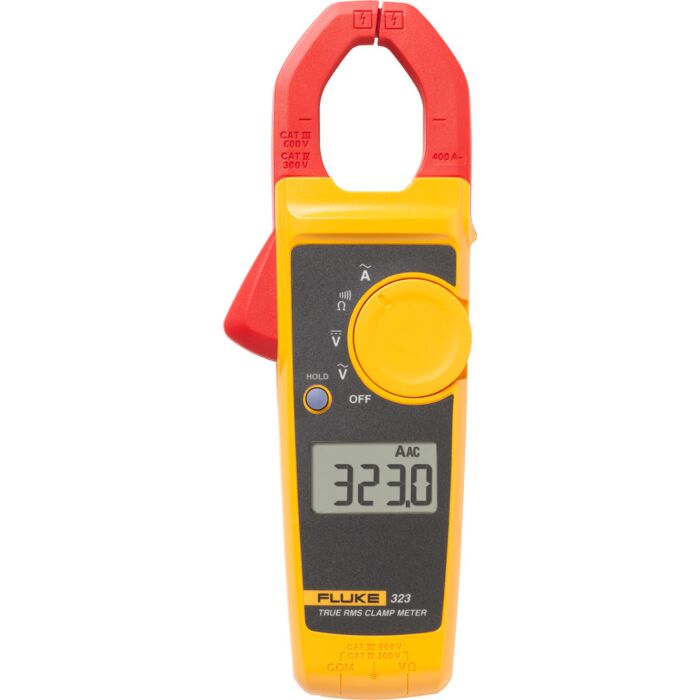

Fluke 323 400A AC True-rms Clamp Meter
400A AC True-rms Clamp Meter
Order #: 323
Mfg #: 5065521
Special Price
$225.75
Regular Price
$271.99
Fluke 323 400A AC True-rms Clamp Meter
400A AC True-rms Clamp Meter
Order #: 323
Mfg #: 5065521
Special Price
$225.75
Regular Price
$271.99
The Fluke 323, 324, and 325 Clamp Meters are designed to perform in the toughest environments and provide noise-free, reliable results users can trust to confidently diagnose problems. True-RMS measurements and optimized ergonomics make the 320 Series Clamp Meters the best general troubleshooting tools for commercial and residential electricians.
Availability:
In stock
Overview
True RMS measurements and optimized ergonomics make the 320 Series Clamp Meters the best general troubleshooting tools for commercial and residential electricians. The Fluke 323 model is ideally suited for current measurements up to 400 A in tight cable compartments.
Product Highlights
- 400 A AC current measurement
- True-rms ac voltage and current for accurate measurements on non-linear signals
- Resistance measurement to up to 40 kO with continuity detection
- Slim, ergonomic design
- CAT IV 300 V/CAT III 600 V safety rating
- Hold button
- Two-year warranty
- Soft carrying case
Each Unit Includes
- Clamp meter
- Test leads
- Soft case
- Users manual
Specifications | ||
AC current | Range | 400.0 A |
Accuracy | 2% ± 5 digits (45 Hz to 65 Hz) | |
2.5% ± 5 digits (65 Hz to 400 Hz) | ||
DC current | Range | - |
Accuracy | - | |
AC voltage | Range | 600.0 V |
Accuracy | 1.5% ± 5 digits | |
DC voltage | Range | 600.0 V |
Accuracy | 1.0% ± 5 digits | |
Resistance | Range | 400.0 Ω/ 4000 Ω |
Accuracy | 1.0% ± 5 digits | |
Continuity | ≤ 70 Ω | |
Capacitance | - | |
Frequency | - | |
AC response | True-RMS | |
Backlight | - | |
Data hold | Yes | |
Contact temperature | - | |
Min/Max | - | |
Size | H x W x D (mm) | 207 x 75 x 34 |
Max wire diameter | 30 mm (600 MCM) | |
Weight | 265 g | |
Category rating | CAT III 600 V | |
CAT IV 300 V | ||
Warranty | Two-year |
Visit our Fluke Clamp Meter Selection Guide
