Overview
Product Highlights

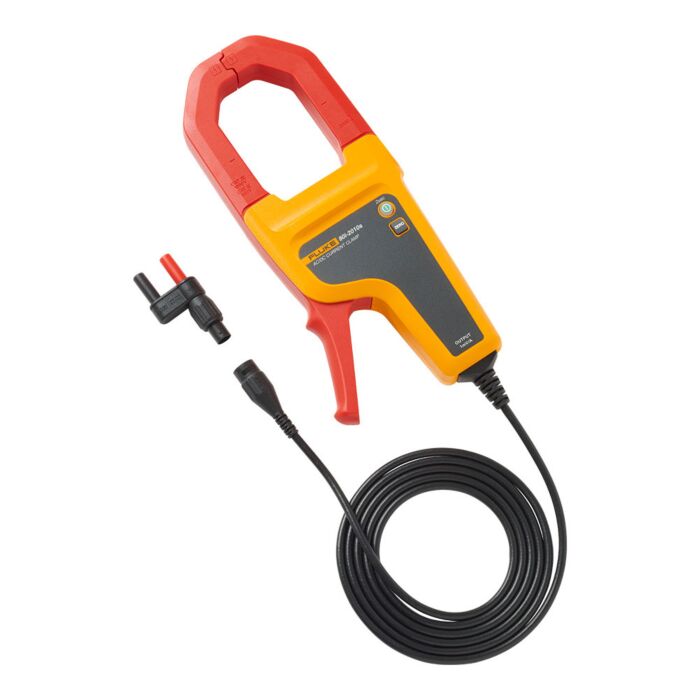

The Fluke 80i-2020s AC/DC Current Clamp is an open jaw current sensor with 2000A range and 1% accuracy.
2,000A range
Measure safely-safety rated for CAT III 1000V, CAT IV 600V environments
1.5 m (60 in) Shielded Coaxial cable with BNC plug
Maximum Conductor Size
52.0 mm (2.05 in)
Maximum Jaw Opening
81.5 mm
Output to Zero
Auto adjustment with Zero button
Temperature Operating
-10 °C to 50 °C (14 °F to 122 °F)
Storage (battery removed)
-30 °C to +60 °C (-22 °F to +140 °F)
Operating Humidity
≤ 90 % RH (at 10 °C to 30 °C) ≤ 75 % RH (at 30 °C to 40 °C) ≤ 45 % RH (at 40 °C to 50 °C)
Altitude Operating
2,000 m (6560 ft)
Storage
12,000 m (40,000 ft)
Demagnetize Clamp
Open and close the Clamp jaws several times with soft click, use of the clamp on uninsulated conductors is limited to 1000 Vac rms or DC and frequencies 1 kHz or less.
Safety
IEC 61010-1, Pollution Degree 2, IEC 61010-2-032: CAT III 1000 V /CAT IV 600 V
