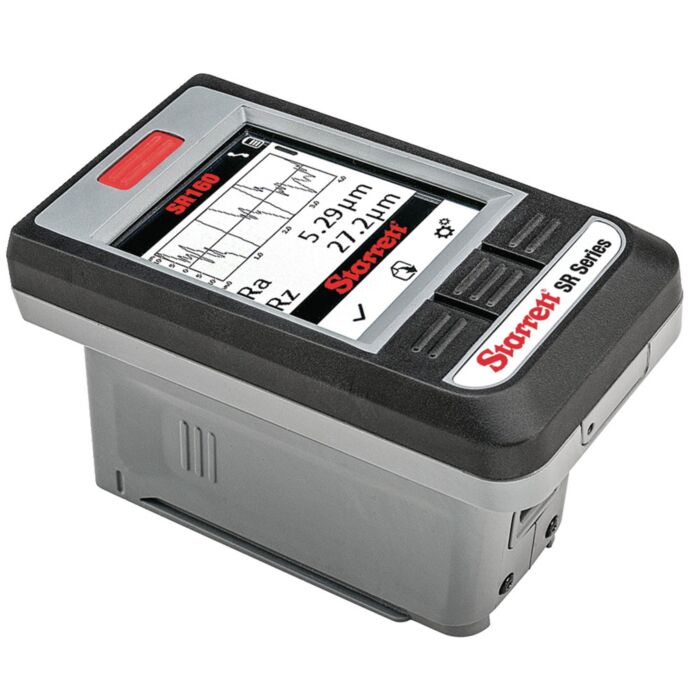

Starrett SR160

Order # SR160

Mfg # 72584

800-828-1470

Save 4%

$4,374.37

$4,199.39

Overview

Starrett SR160

Order # SR160 | Mfg # 72584

Save 4%

$4,374.37

$4,199.39

Ships in 3-4 weeks

This surface roughness tester is simple, accurate, and of high-quality. It performs a wide variety of parameters, from common Ra to more complex Rz1Max and Rsk parameters. The design makes the device simple to navigate, intuitive, and reliable. Of the highest in Starrett quality.

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

Tactile Measurement Button
Two=Piece Contruction with Bluetooth Low Energy Connectivity
Diamond Stylus and Piezoelectric Pickup
Li=Poly Battery
Rubberized Molding
Profile Graph
Simple Navigation
Accuracy (in): 5% of reading + 4 micro=in.
Accuracy (mm): 5% of reading + 0.1 micron
Cutoff Lengths: 0.8mm
Filter: Gaussian
Measuring Range: 1600 micro=in. (40 microns)
Pick=up Stylus: Piezoelectric
Roughness Parameter: Ra,Rz,Rp,Rv,Rt,Rz1Max,Rsk,Rq,Rku,Pa,Pz,Pp,Pv,Pt
Tracer Tip: Diamond, 5 micron radius
Tracing Length: 0.2 in (5mm)
Tracing Speed: 0.08 in/sec (2mm/sec)
