Imada DSV
Vector Force Gauge, 7oz, 2N 200kgf

Order #: DSV-0.4

Mfg #: DSV-0.4

Questions about availability or need help? Contact Us:

(800) 633-0561
$903.00

Imada DSV

Vector Force Gauge, 7oz, 2N 200kgf

Order #: DSV-0.4

Mfg #: DSV-0.4

$903.00
Availability:
In stock

Product Highlights

  • Tilt Sensor: Alerts User to Deviation from the Reference Angle
  • Backlit LCD Display with User- Friendly Menus
  • Ergonomic, Durable, Heavy-Duty Metal Construction
  • 30,000/Sec Ultra High Sampling Rate
  • 1,000 Data Memory; Automatically Calculates Max, Min, Avg Statistics
  • USB and RS-232C Output
  • Selectable Real Time or Peak Mode Operation
  • Setting Security Lock Prevents Accidental Changes
  • Overload Capacity 200% F.S.; Display Flashes at Overload Limit
  • Runs on Internal Ni-MH Batteries (User Replaceable) or AC Adapter. Batteries Can Also be Charged by USB port or USB Portable Chargers

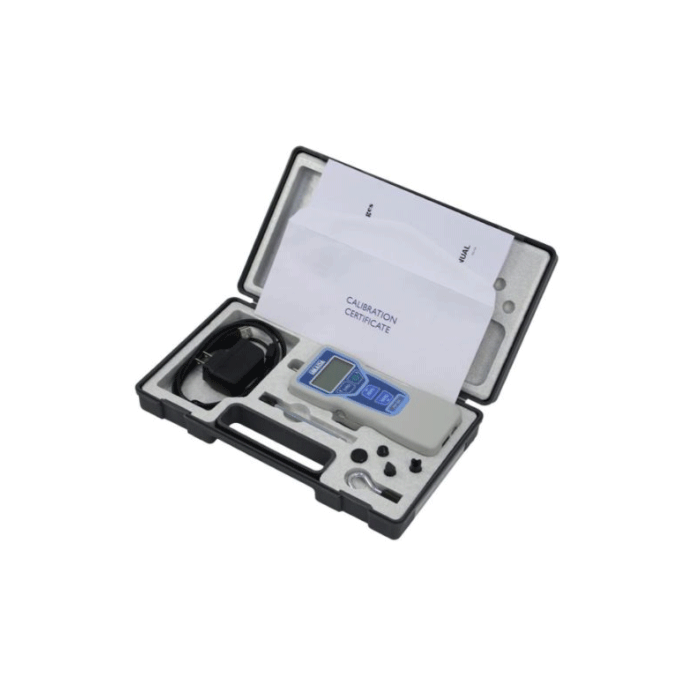

Each Unit Includes:

  • DSV Kit Includes Set of Six Attachments
  • AC Charger/Adapter
  • Calibration Cert Traceable to NIST and Carrying Case
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
DSV Specifications
Tilt AlarmOFF, Strict (4°), Normal (8°) or Loose (18°)
Accuracy± 0.2% F.S., ± 1 LSD
Selectable Units
lbf(ozf), kgf(gf) or Newtons
Display4 digit backlit LCD
Overload CapacityApprox. 200% of F.S.
Overload AlarmAudible alarm at 90% of capacity;
Audible alarm and indicator flashes beyond 110% of F.S.
Sampling Rate30,000/second
Internal Memory1,000 data with statistics
Battery LifeApprox. 30 hours backlight off
Approx. 14 hours backlight on
4.5 hours required for full charge
Battery IndicatorBattery icon displays three levels of charge
SetpointsProgrammable high/low setpoints with OK indicator
OutputsUSB, RS-232C
Operating Temp.32° to 100°F (0° to 40°C)
Accessories IncludedAC adapter, Attachments (hook, flat tip, conical tip, chisel tip,
notched tip, extension shaft), Carrying Case
