Starrett 1150Z-4 53169

Order # 1150Z-4

Mfg # 53169

800-828-1470

Save 5%

$4,072.64

$3,869.00

Overview

Starrett 1150Z-4 53169

Order # 1150Z-4 | Mfg # 53169

Save 5%

$4,072.64

$3,869.00

Ships in 3-4 weeks

These compact gages have rigid aluminum alloy frames protected from hand heat by insulating handles. They are used to gage outside diameters to an accuracy of .0001". Dimensional variations are transmitted to the dial indicator through a linear friction-free transfer mechanism totally enclosed for protection against side thrust, foreign matter and coolants. Flat gaging contacts simplify measurement close to shoulders. The top sensitive contact may be reversed to present a spherical face to the work. An adjustable backstop simplifies centering the work. 2-4" Range, in Case work.

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

The contacts and backstop are 5/16" diameter hardened tool steel, precision ground and lapped fl at
Contacts are individually adjustable to maximum 2" range and are locked in position by tightening parallellock clamps to maintain parallelism of faces
Both contacts are also keyed to maintain orientation of faces regardless of adjustment
Plus andr minus are read directly. Dial face has a double row of graduations reading in opposite directions. Red "Minus" and black "plus" grads
The indicator can be rotated 360° and locked in position to read from any angle, and a fine-adjusting screw provides for zero setting the hand
A guard protects the dial indicator when the gage is laid down

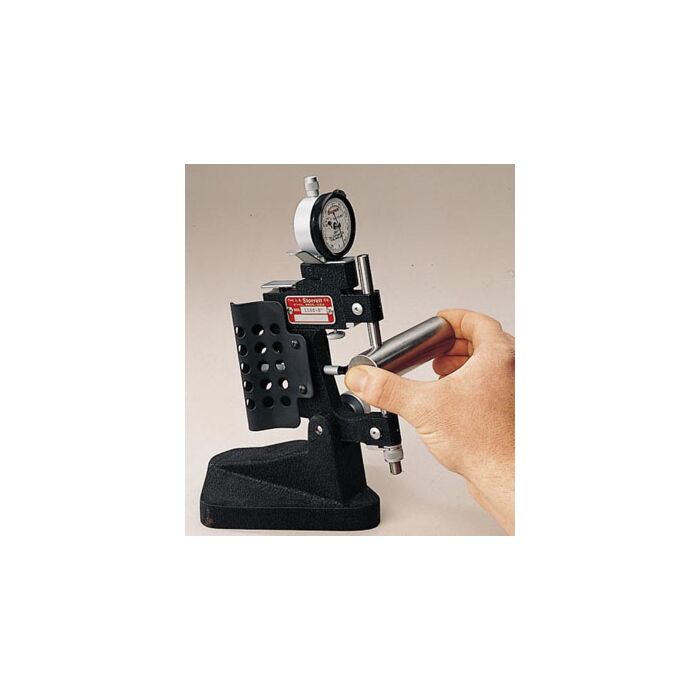

A bench stand is available to convert the gage to a bench comparator

Specifications

Type: Snap Gage
Range (in): 2 - 4"
Graduations (in): .0001"
Dial Reading: +10 / -10 .040" Range
