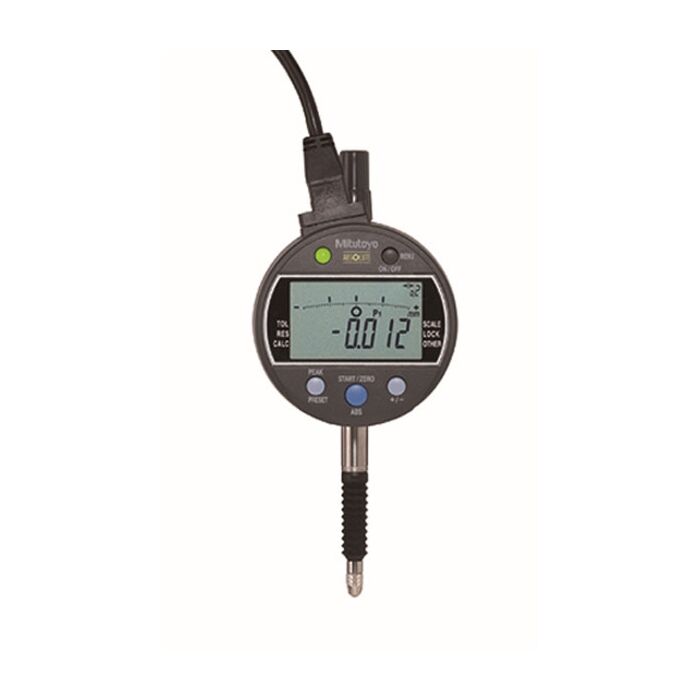

Mitutoyo 543-352
Digital Indicator,12.7mm/.500" Lug Back

Order #: 543-352

Mfg #: 543-352

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $900.48 Regular Price $938.00

Mitutoyo 543-352

Digital Indicator,12.7mm/.500" Lug Back

Order #: 543-352

Mfg #: 543-352

Special Price $900.48 Regular Price $938.00
Availability: Ships in 3-4 weeks

Product Highlights

  • With the max./min. value holding function, the signal ID-C can output the signal of the GO/±NG judgment result against the peak values set. Substitute for the mechanical/electrical contact, the judgment is carried out by calculating the measurement data obtained. This provides high reliability with no deterioration of the contact point and volume adjustment.
  • The signal can be output to an external device like a sequencer through the NPN open-collector.
  • The GO/±NG judgment result is also indicated by the green/red LED and the "<, O, >" signs on LCD.
  • Employing the ABSOLUTE linear encoder, the Signal ID-C always displays the spindle "Absolute Position" from the origin at power-on.
  • The Signal ID-C achieves the IP54 protection level to resist dust and contaminants for safe operation in harsh machine shop environments.
  • w/lug,flat-back
  • Resolution .00005in 0.001mm
  • Range .5in 12.7mm
  • Accuracy .00012in
  • Measuring Force 2.0N or less
  • ANSI/AGD type Stem dia 3/8in 4-48 UNF Thread
