Product Highlights
Type:
- SP6T configuration
- Magnetic latching
- Terminated ports
Excellent RF repeatability & long life span:
- Operating life of 10 million cycles
- Guaranteed repeatability of 0.03 dB up to 5 million cycles
Superior RF performance:
- Excellent isolation, typically >90 dB at 26.5 GHz
Features:
- Opto-electronic indicators and interrupts
- TTL/5V CMOS compatible (optional)

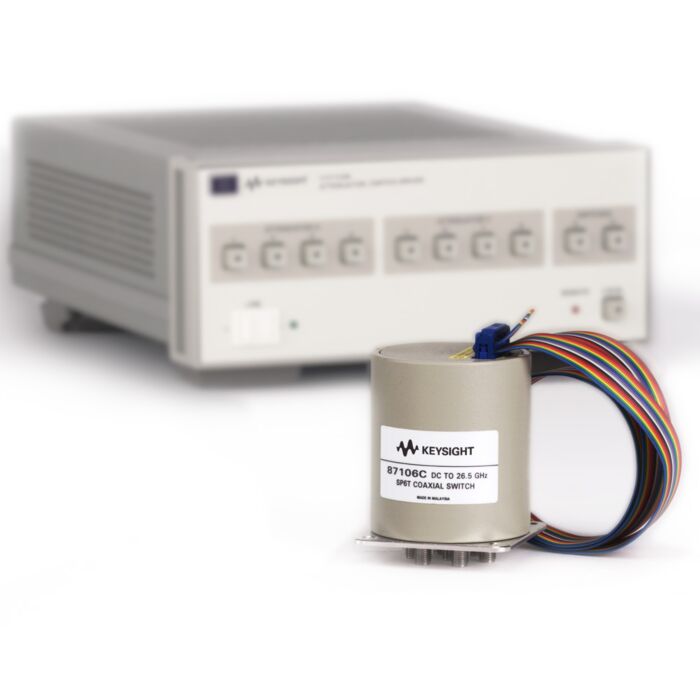

The Keysight 87106C multiport switch improves insertion loss repeatability and isolation, which is necessary for higher performance test systems. The repeatability and reliability of this switch is vital to ATS measurement accuracy and can cut the cost of ownership by reducing calibration cycles and increasing test system up time. The Keysight 87106C terminated multiport switch provides the long life and reliability required for automated test and measurement, signal monitoring, and routing applications. Highly repeatable switching capability is made possible through Keysight's rigorous design and tight manufacturing specifications. Low insertion loss repeatability reduces sources of random errors in the measurement path, which improves measurement accuracy.
