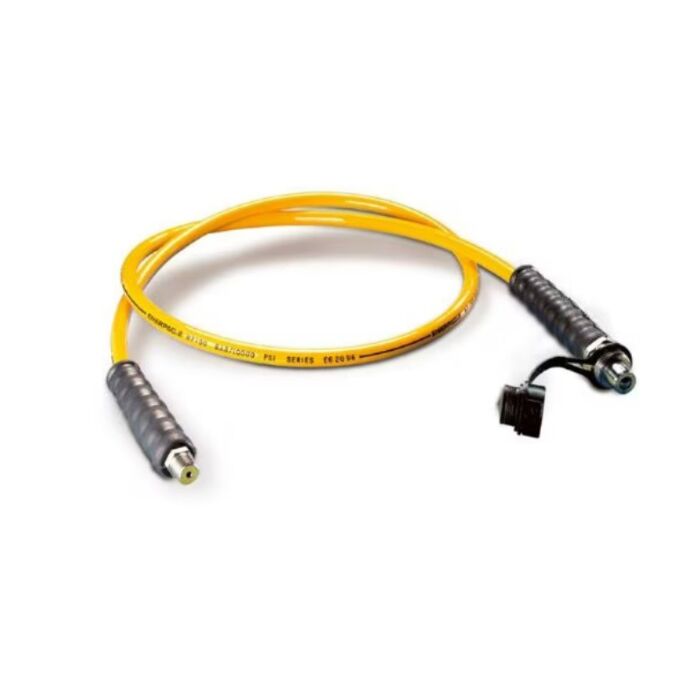

Enerpac HC7210 10'High Pressure Hose

Overview

Product Highlights

H700-Series Hoses have a safety factor of 4:1 to provide the reassurance and reliability needed for demanding high-pressure applications.

Each hose contains two layers of steel wire braids covered by a polyurethane sleeve - providing the strength and abrasion resistance needed for repeated use in tough working environments.

Diameters available 0.25 and 0.38" (6.4 and 9.7mm), and connection types include 1/4" NPTF, 3/8" NPTF and CH604.

A variety of lengths are available up to 50 ft (15 m), and the vinyl strain relief guard on both ends of hose helps to improve hose life and durability.

Technical Resources

Enerpac H Series Datasheet

Specifications

Maximum Operating Pressure (psi)	10,000
Internal Diameter (in)	0.25
End One Coupler	3/8" NPTF
End Two Coupler	CH604
Oil Capacity (in3)	5.89
Hose Oil Capacity (in3)	When using long hose lengths, it is sometimes necessary to fill the pump reservoir after filling the hoses. To determine the hose oil capacity, use the following for .25" internal diameter hoses: Capacity (in3) = .5892 x Length (ft)
Length (ft)	10
Weight (lbs)	3.3
