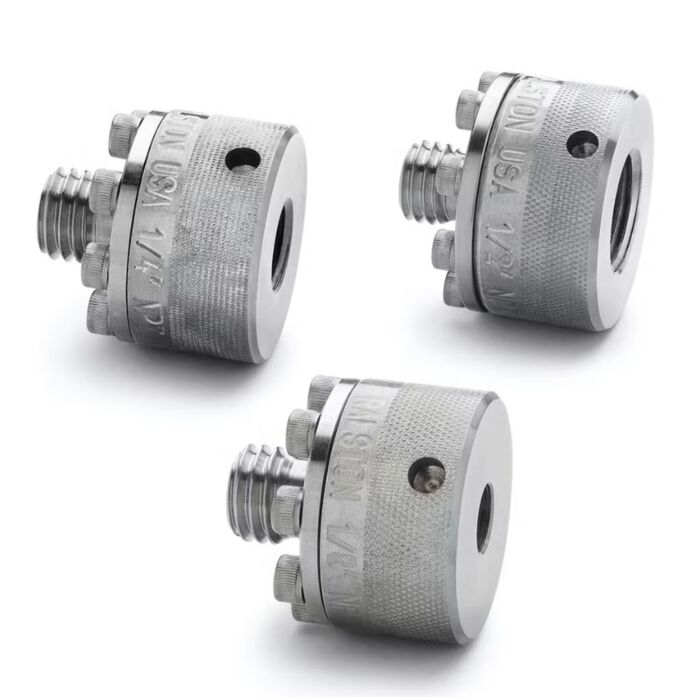

Ralston Instruments XTHA-KIT4 1/8" , 1/4" , 1/2" FNPT QuickConnect Stainless Steel x M Quick-test XT Adapters

Order # XTHA-KIT4 | Mfg # XTHA-KIT4
Save 1%
$1,112.03
$1,112.02

Made In The USA

arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

(1) 1/8", (1) 1/4", (1) 1/2" FNPT Quick-connect S.S. x Male Quick-test XT adapters, nylon bag

Adapt to pressure gauges or transmitters with Male NPT connections up to 10,000 psi without a wrench or thread sealant

  • Reference Connection: 1/8" female NPT Quick-connect x male Quick-test XT, S.S.
  • Reference Connection: 1/4" female NPT Quick-connect x male Quick-test XT, S.S.
  • Reference Connection: 1/2" female NPT Quick-connect x male Quick-test XT, S.S.
  • Bag: Zippered bag to hold hose and adapters, nylon

Technical Resources

Ralston Instruments XTHA-KIT4 Datasheet

Specifications

Weight 6.19 oz / 175 grams
Length 1.72 in / 44 mm
Width 1.41 in / 36 mm
Height 1.41 in / 36 mm
Country of origin USA
Dimensions A 0 In / 0.00 mm
Dimensions B 0 In / 0.00 mm
Materials Stainless Steel
Max Operating Temperature 400 °F / 205 °C
Max Pressure 15000 PSI / 1000 bar / 100 MPa
Min Operating Temperature -15 °F / -26 °C
Seal Materials Teflon, Viton
End 1 Connector 1/8" Female NPT (ASME B1.20.1)
End 1 Quick Disconnect Yes
End 2 Connector Male Quick-test XT
