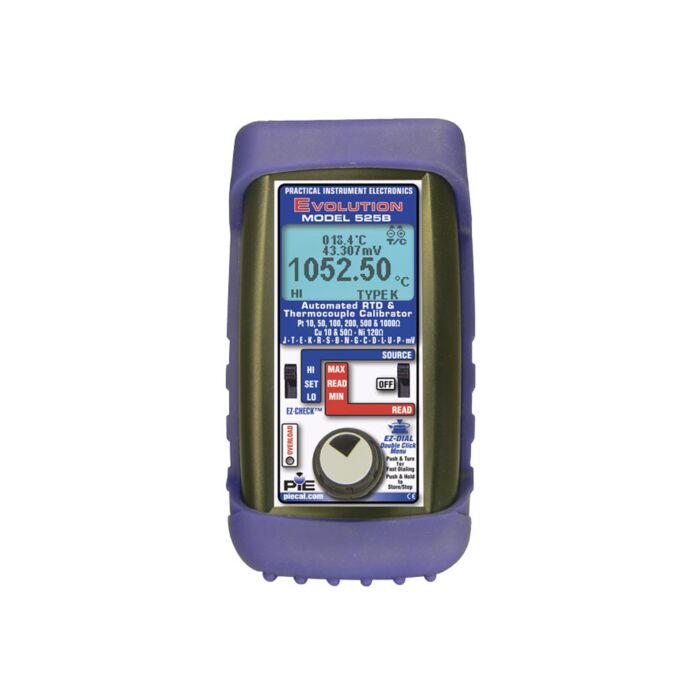

PIE 525B
Automated T/C & RTD Calibrator 12 RTD & 14 T/C types

Order #: PIE 525B

Mfg #: PIE 525B

Questions about availability or need help? Contact Us:

(800) 633-0561
$3,148.60

PIE 525B

Automated T/C & RTD Calibrator 12 RTD & 14 T/C types

Order #: PIE 525B

Mfg #: PIE 525B

$3,148.60
Availability:
In stock

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

Product Highlights

  • Calibrate T/C instruments to 0.1 & 0.01 °F & °C
    • Types J, K, T, E, R, S, B, N, G, C, D, L (J DIN), U (T DIN) & P (Platinel): -13.000 to 80.000 mV
  • Calibrate RTD instruments to 0.1 & 0.01 °F & °C
    • Pt 10, 50, 100, 200, 500 & 1000 Ohm (3850)
    • Pt 100 Ohm (alpha=3902, 3916, 3926)
    • Cu 10 & 50 Ohm and Ni 120 Ohm
  • Calibrate with Confidence
    • Resolution to 0.01 °F & °C; Accurate to 0.2°C
    • Cold Junction Sensor Accurate to 0.05°C
  • Perform Heat Treating Surveys & Accuracy Tests
    • Meets or exceeds the requirement of AMS 2750 as both a Secondary Standard Instrument and as a Field Test Instrument
  • Troubleshoot RTD Sensors & Instruments
    • Automatic detection of 2, 3 or 4 wire connections indicates when individual wire connections are open
    • Verify proper instrument operation by measuring the excitation current
  • Faster Calibrations
    • Instantly select three outputs with EZ-CHECK switch
    • Easily find trip points with two speed EZ-DIAL knob & Automatic Stepping
  • Easily Change T/C Types & Scale
    • Double click to select T/C type & °F & °C
  • Use in the Plant, Field or Shop
    • Includes Rubber Boot and mV Test Leads
    • Low profile switches resist accidental damage
    • Brass screws for T/C wires plus mini T/C socket
  • Easy-to-Read Display
    • Turn on the backlight to read in dark areas of the plant
  • Simple "No Tool" Battery Changes
    • Four inexpensive "AA" batteries
  • Verify Resistance, Cold Junction Temperature & Output
    • Secondary Display of Resistance for RTDs and compensated millivolt setting and cold junction temperature for T/C

Each Unit Includes

  • Four “AA” Alkaline batteries
  • Certificate of Calibration Card
  • Rubber Boot Part No. 020-0213
  • Deluxe Hands Free Carrying Case Part No. 020-0211
  • Evolution mA/V Test Leads Part No. 020-0207 - 1 Red & 1 Black Lead with Banana Plugs & Alligator Clips
  • Evolution RTD Wire Kit Part No. 020-0208 - 2 Red & 2 Black Leads with Banana Plugs & Spade Lugs
