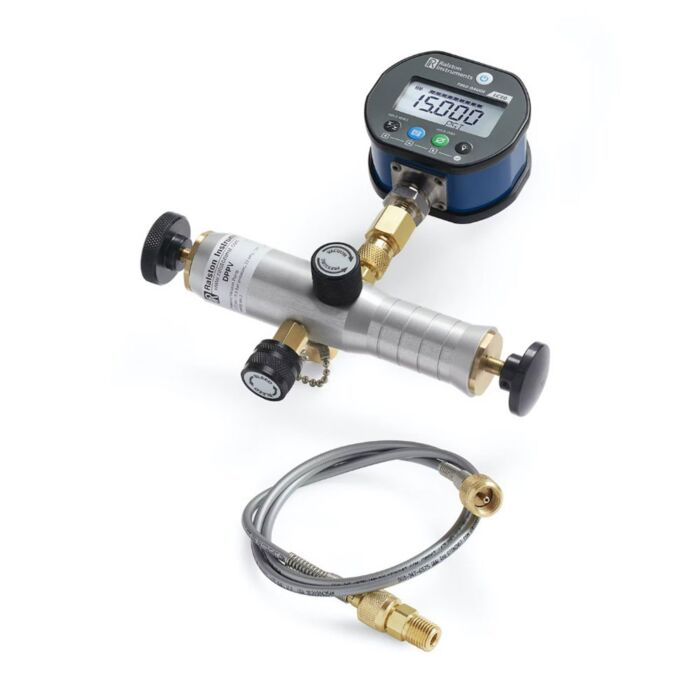

Ralston Instruments DPPV-KIT6-GC
DPPV pressure/vacuum pump, +/-15psi LC20,3ft hose,adapter
Order #: DPPV-KIT6-GC
Mfg #: DPPV-KIT6-GC
$1,767.93
Ralston Instruments DPPV-KIT6-GC
DPPV pressure/vacuum pump, +/-15psi LC20,3ft hose,adapter
Order #: DPPV-KIT6-GC
Mfg #: DPPV-KIT6-GC
Product Highlights
DPPV pressure/vacuum pump, +/-15 psi/100 kPa LC20 gauge, 3ft hose, 1/4" MNPT adapter
Create pressure or vacuum and calibrate instrumentation using a pressure gauge or calibrator attached to the pump (gauge or calibrator not included)
- Hand Pump: DPPV Pneumatic Pressure / Vacuum Hand Pump
- Pressure Reference: LC20 pressure gauge, +/- 15 psi / 100 kPa, 1/4" Male NPT bottom connection
- Reference Connection: 1/4" female NPT x female Quick-test, no check-valve, brass
- Process Connection: 1/4" male NPT x male Quick-test, no check-valve, brass
- Hose: Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long
Pressure Reference | None |
---|---|
Process Connection | 1/4" Male NPT |
Reference Connection | 1/4" Female NPT |
Country of origin | USA |
Max Pressure | 125 PSI / 8.6 bar / 860 kPa |
Max Vacuum | -23 InHg / -77.9 kPa |
Materials | Anodized Aluminum, Brass, Stainless Steel |
Seal Materials | Buna-N, Teflon |
Min Operating Temperature | 0 °F / -18 °C |
Max Operating Temperature | 130 °F / 54 °C |
