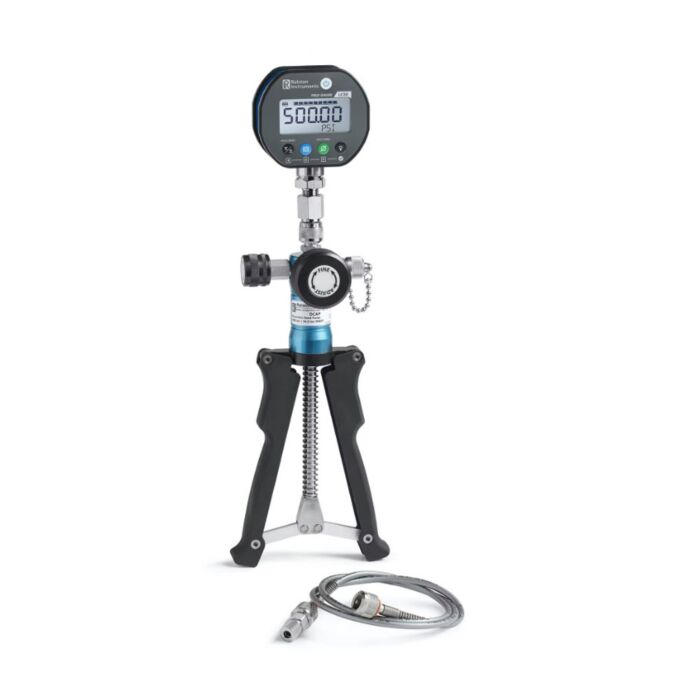

Ralston Instruments DCAP-KIT6-GP
DCAP pneumatic pump, 1000 psi LC20, 3ft hose, adapter

Order #: DCAP-KIT6-GP

Mfg #: DCAP-KIT6-GP

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $2,352.23 Regular Price $2,352.24

Ralston Instruments DCAP-KIT6-GP

DCAP pneumatic pump, 1000 psi LC20, 3ft hose, adapter

Order #: DCAP-KIT6-GP

Mfg #: DCAP-KIT6-GP

Special Price $2,352.23 Regular Price $2,352.24
Availability: Ships in 3-4 weeks

Product Highlights

DCAP pneumatic pump, 1000 psi/7 MPa LC20 gauge, 3ft hose, 1/4" MNPT adapter

  • Hand Pump: DCAP Pneumatic Hand Pump
  • Pressure Reference: LC20 pressure gauge, 1000 psi / 7 MPa, 1/4" Male NPT bottom connection
  • Reference Connection: 1/4" female NPT x female Quick-test, no check-valve, S.S.
  • Process Connection: 1/4" male NPT x male Quick-test, no check-valve, S.S.
  • Hose: Quick-test 6900 psi hose, S.S. hose ends, 3 ft (92 cm) long
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Fine Adjustment Resolution .001 PSI / 0.01 mbar / 0.00 kPa
Materials Anodized Aluminum, Stainless Steel
Max Pressure 650 PSI / 45 bar / 4.50 MPa
Max Operating Temperature 130 °F / 54 °C
Min Operating Temperature 0 °F / -18 °C
Pressure Media Air
Seal Materials Buna-N, Delrin, Teflon
Country of origin USA
Hose 1 Quick-test Hose, Stainless Steel ends, 3ft / 0.9m long
Pressure Reference Digital pressure gauge, 500 PSIG Pressure
Process Connection 1/4" Male NPT
Reference Connection 1/4" Female NPT
