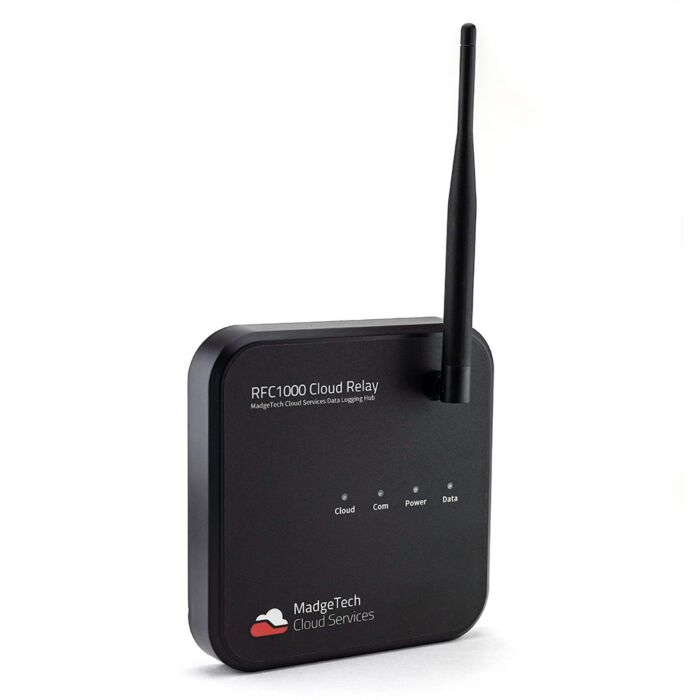

MadgeTech RFC1000 CLOUD RELAY
Order #: RFC1000-CLOUD-RELAY
Mfg #: 901900-00
Product Highlights
MadgeTech Cloud Services data logging hub for use with the RFOT and RF2000A series.
The RFC1000 Cloud Relay is a compact, versatile device connecting MadgeTech wireless loggers directly to the cloud, eliminating the need for a central PC. With the RFC1000 Cloud Relay, real-time data can easily be transmitted to the MadgeTech Cloud where it can be viewed from any internet enabled device. The simple design of the RFC1000 Cloud Relay allows for it to be seamlessly integrated into wireless data logging systems. Featuring a seven inch pivoting antenna, the RFC1000 Cloud Relay can be wall mounted or placed on any flat surface. Connecting directly to an Ethernet port allows for cloud connectivity without the need for a computer. Each RFC1000 Cloud Relay can transmit data from up to 64 wireless data loggers, with no limit on the number of Cloud Relays that can be connected to a cloud account. All data is stored in the cloud, with the option to download and print .CSV files for easy record keeping and further analysis.
| LED Indicators | Red, Amber & Green |
| Material | ABS Plastic (body), PVC Plastic (antenna) |
| Dimensions | Body: 6.0 in x 6.24 in x 1.15 in (152.2 mm x 158.6 mm x 29.3 mm) Antenna: 7.2 in (183 mm) |
| IP Rating | IP40 |
| Operating Environment | -20 °C to +85 °C, 0 to 95 %RH non-condensed |
| Approvals | FCC ID:OA3MRF24J40MC, IC#: 7693A-24J40MC |
| RF Carrier Frequency | 2.405 GHz - 2.475 GHz |
| Typical outdoors Line of sight | To RFC1000: 4000 ft max. / To Data Logger: 2000 ft max. |
| Typical Indoors line of sight | To RFC1000: 1000 ft max. / To Data Logger: 500 ft max. |
